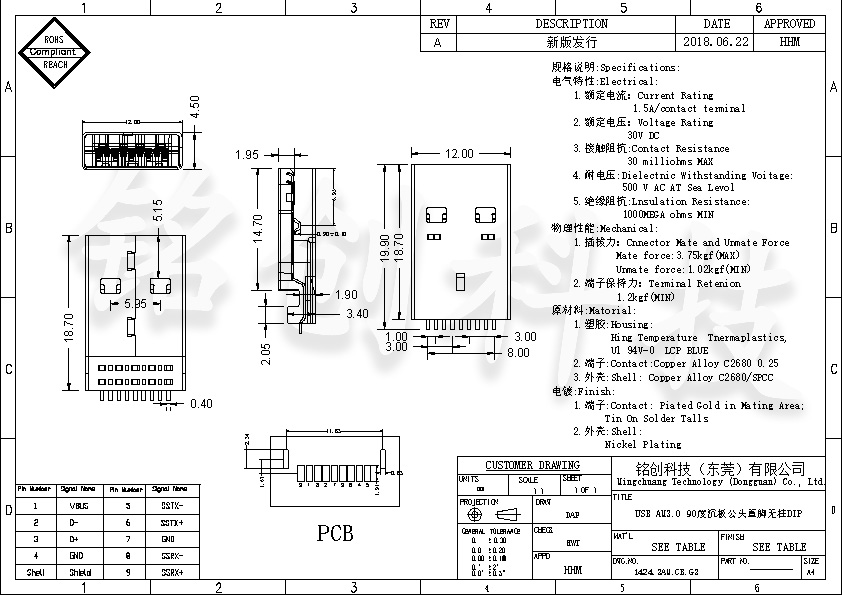

Industry certification:

USB-IF certification (USB3.0 Gen2), compliant with USB 3.2 Specification Rev 1.0; RoHS 2011/65/EU (lead-free, halogen-free), REACH SVHC has passed 233 tests.

CE/FCC electromagnetic compatibility certification, conducted interference<40dB μ V (30MHz-1GHz), radiated interference<30dB μ V (30MHz-10GHz).

Production control:

Sampling is conducted for each batch, including contact impedance testing (initial<50m Ω,<70m Ω after 5000 insertions and removals), voltage withstand testing (1000V AC/1min no breakdown), and blue adhesive curing degree testing (≥ 95%).

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation requirements:

The wave soldering temperature is controlled at 260 ± 5 ℃, and the soldering time is 5-8 seconds; Reflow soldering peak ≤ 255 ℃, to avoid overheating and yellowing of the blue glue (with a maximum temperature resistance of 120 ℃).

The height tolerance of the sinking plate is ± 0.1mm. It is recommended to use a positioning fixture, and the distance between the PCB opening and the male head should be ≤ 0.1mm to prevent welding deviation.

Usage restrictions:

Non waterproof models (unopened blue glue) are prohibited from coming into contact with liquids. Sealed models should be checked for cracks in the blue glue after long-term use (recommended replacement cycle of 1 year).

When the current exceeds 0.9A, a 100 μ F electrolytic capacitor needs to be connected in parallel. The thickness of the PCB copper foil should be ≥ 35 μ m (1oz) to avoid overheating of the VBUS pin.

Compatibility Description:

When connecting to a USB 2.0 device, the speed automatically drops to 480Mbps. It is recommended to use a USB 3.0 certified cable (such as AWG28 specification), as non certified cables may cause unstable transmission.

Maintenance suggestion:

Wipe the interface with anhydrous ethanol during cleaning to avoid using chlorine containing solvents; In industrial environments, compressed air (0.5MPa) is used quarterly to remove dust from the gaps of the blue glue to prevent short circuits caused by foreign objects.
