Product Description:

This TYPE C female connector features a 2PIN interface design, supporting soldering installation, suitable for applications that require wiring. It complies

with USB interface standards, ideal for data transmission and power connection in various electronic devices. The soldering type design allows easy

connection to cables, ensuring stable power and signal transmission. Its compact structure and reliability make it widely used in consumer electronics,

industrial equipment, automotive electronics, and more.

Key Features:

1. 2PIN Soldering Design:

   This product adopts a 2PIN interface and supports soldering installation, making it easy to connect to external cables for applications requiring wiring.

2. Compact Structure:

   With a compact design, it is suitable for various small devices, saving space and providing installation flexibility.

3. Stable Connection:

   The soldering installation provides stable power and signal transmission, ensuring long-term reliable performance.

4. USB Interface Standard:

   This product complies with USB interface standards, supporting efficient data transmission and power connection to meet the needs of various devices.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

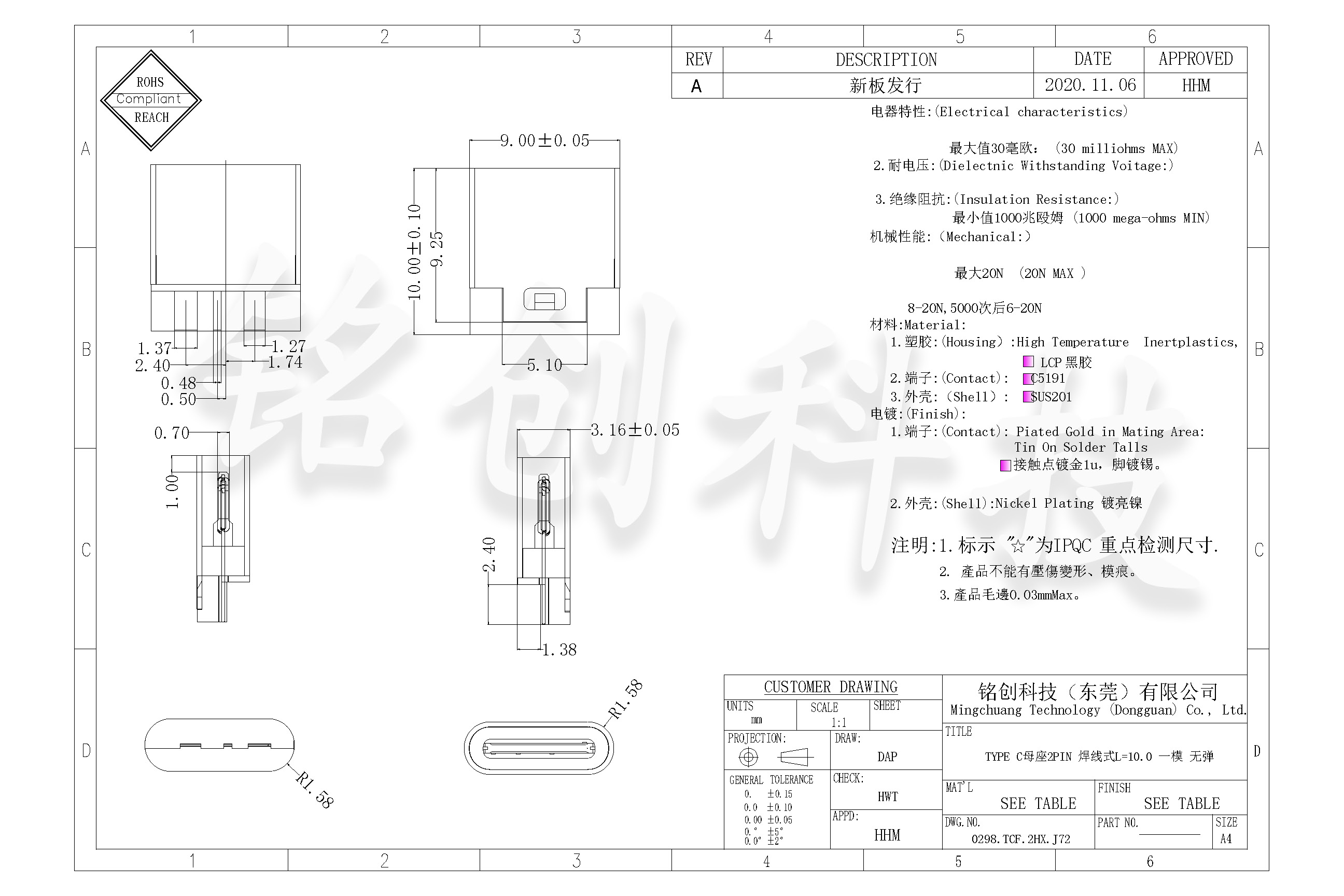

TYPE C Female Connector 2PIN Wire Soldering L=10.0 USB Interface Two Pads Usage Notes:

1. Installation and Soldering:

   - Before soldering, ensure that the PCB pads are properly aligned with the connector pins to avoid poor contact caused by misalignment.

   - Use appropriate temperature and time during soldering to prevent overheating that could damage the connector or PCB.

   - After soldering, inspect the solder joints to ensure the pins are securely connected to the PCB pads.

2. Electrical Performance:

   - This connector is suitable for low-power or signal transmission applications, providing stable data transmission and electrical performance.

   - Ensure that the soldered wire connections are properly made, avoiding poor contact or short circuits that could affect signal transmission.

3. Soldering Precautions:

   - Avoid excessive solder during the soldering process, as it may affect the contact between the connector pins and the pads.

   - After soldering, use tools like a multimeter to check the electrical connection and ensure stable signal transmission.

4. Installation Space:

   - Ensure the installation space meets the size requirements for the connector and provides enough room for soldering, avoiding difficulties due to

limited space.

5. Application Scenarios:

   - Suitable for electronic devices that require wire connection through soldering, such as consumer electronics, industrial control devices, etc.

   - Especially ideal for applications where a small connector and high-reliability connection are needed.

6. Storage and Transportation:

   - Store in a dry, cool place, ensuring the connector pins remain clean to avoid short circuits during soldering.

   - During transportation, avoid heavy impacts to prevent damage to the pins or connector.
