Product Description:

This product is a high-performance Type-C USB female connector, featuring a 16Pin interface design, 1.6mm board height, 3.18mm contact height, and

high-conductivity copper material. It supports tri-mode functionality, offering excellent data transmission performance and stability. Suitable for a wide

range of electronic devices that comply with USB interface standards, it is widely used in consumer electronics, industrial equipment, and more.

Key Features:

1. Tri-Mode Support:

   Supports tri-mode functionality, compatible with USB 2.0, USB 3.0, and USB 3.1 standards, meeting the needs for high-speed data transmission.

2. 16Pin Interface Design:

   The 16Pin interface ensures stable power and data transmission, suitable for various USB devices, guaranteeing efficient connectivity.

3. 1.6mm Board Height Design:

   The board height design enhances plug-in stability and reliability, increasing product durability.

4. High-Conductivity Copper Material:

   The high-conductivity copper material improves current transmission efficiency, ensuring stable power and data transfer.

5. Spring Structure:

   The spring design ensures flexibility and secure connection, suitable for various installation needs.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures that the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

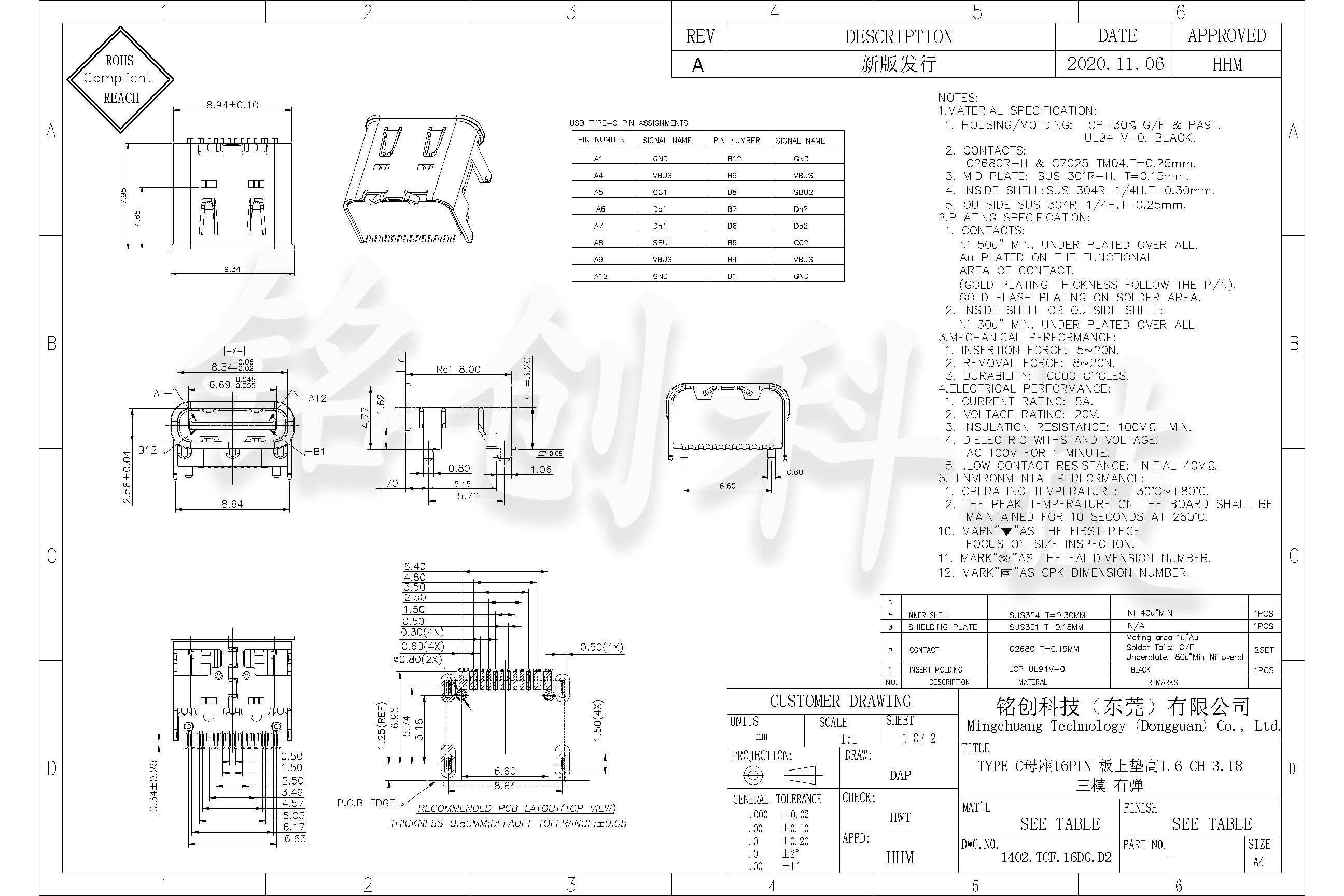

Type-C Female Connector 16Pin Board Height 1.6mm CH=3.18 Three Modes with Spring High-Conductivity Copper USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure that the soldering surface is clean before installation to avoid oil or dust affecting soldering quality.

   - The soldering temperature should be controlled within the recommended range to prevent high temperatures from damaging the internal structure

of the connector.

   - Ensure that the soldering pins are securely soldered to provide stable connections for long-term use.

2. Electrical Performance:

   - This product supports USB 3.1, USB 2.0, and Power Delivery (PD) modes, providing high-bandwidth data transmission and power delivery capabilities.

   - Ensure that the devices and cables used are compliant with USB three-mode standards to ensure optimal interface performance.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid excessive impact between the plug and the socket, which could damage the contact points.

   - Always follow the correct insertion direction to prevent misalignment and damage to the connector.

   - Limit the number of insertions and extractions within the specified range to prevent excessive wear.

4. Height Design:

   - This connector features a board height design, providing more space between the connector and the PCB to accommodate various device installation

needs.

   - The height design helps improve contact reliability and reduces installation issues caused by PCB design limitations.

5. Material Properties:

   - The connector is made of high-conductivity copper, ensuring excellent electrical conductivity and corrosion resistance for long-term stable connections.

   - The connector is highly resistant to corrosion, suitable for use in various environments, but prolonged exposure to extreme conditions should be avoided.

6. Cleaning and Maintenance:

   - If dust or moisture accumulates on the interface, wipe it off with a clean, soft cloth, avoiding the use of chemical cleaning agents.

   - Regularly check the soldering pins and spring contact points to ensure there is no loosening or corrosion.

7. Operating Environment:

   - This product is suitable for high-bandwidth applications, consumer electronics, and industrial control.

   - Avoid prolonged exposure to high-temperature, high-humidity, or corrosive environments to ensure its stability and long lifespan.

8. Storage Conditions:

   - Store unused products in a dry, cool, and well-ventilated environment, away from direct sunlight.

   - Avoid storing the product in extreme temperature environments to prevent material aging or performance degradation.
