Product Description:

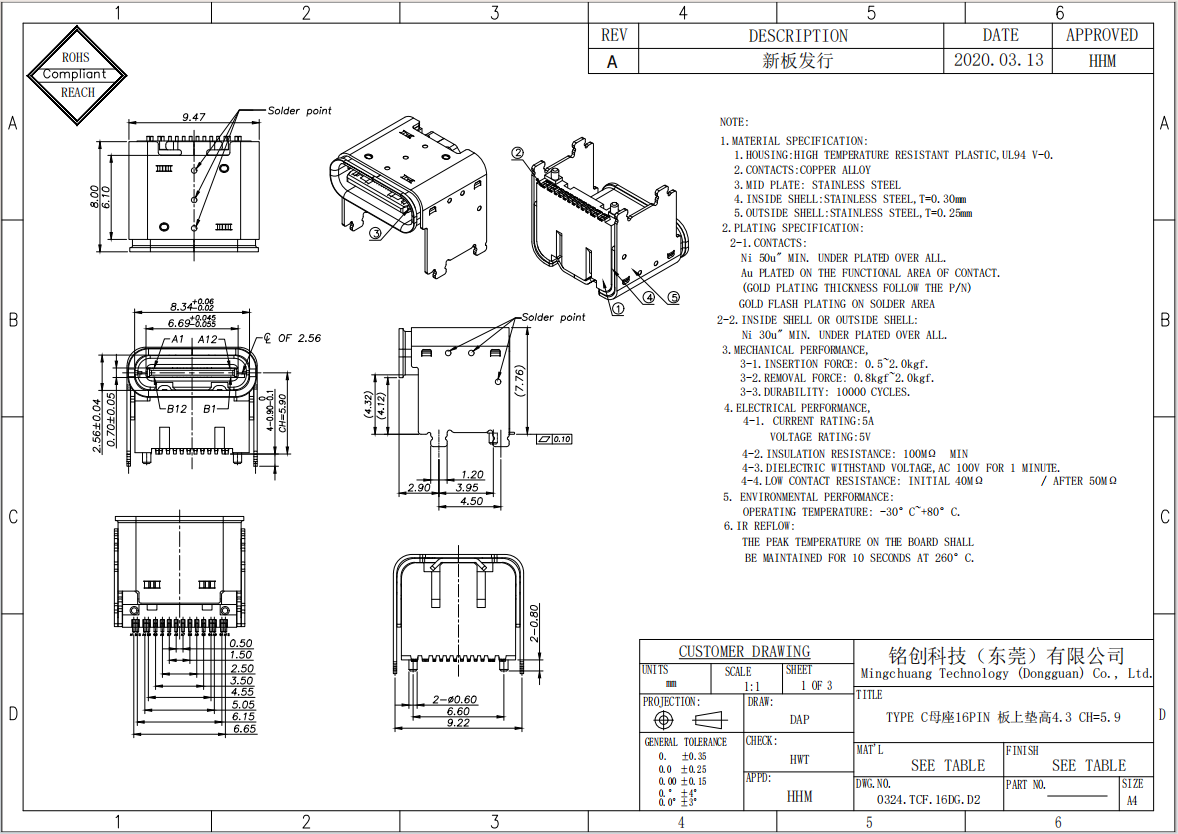

This TYPE C female connector features a 16PIN interface design, with a 4.3mm height on board and a CH (center height) of 5.9mm. The product

supports high-speed data transmission and is suitable for various USB 3.0/3.1 devices. Its compact design makes it ideal for applications with limited

space, and it is widely used in consumer electronics, industrial equipment, automotive electronics, and more.

Key Features:

1. 16PIN Interface Design:

   Equipped with a 16PIN interface, supporting USB high-speed data transmission, compatible with various USB devices.

2. 4.3mm Height on Board Design:

   The height on board design ensures a more stable connection while adapting to various installation environments.

3. CH=5.9mm:

   With a center height of 5.9mm, the product ensures optimal contact performance with the PCB, ensuring stable data transmission.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring materials are safe and environmentally friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

TYPE C Female Connector 16PIN Board-Mount, 4.3mm Height, CH=5.9 USB Interface Usage Notes:

1. Installation and Operation:

   - During installation, ensure the connector pads are correctly aligned with the PCB to avoid poor contact or signal interference due to improper

soldering. Pay special attention to the raised height to ensure the connector does not deform under external force.

   - The raised height design enhances connector stability and prevents contact with other components, reducing the risk of damage.

2. Electrical Performance:

   - This connector uses high-conductivity materials to ensure stable electrical performance, supporting high-speed data transmission and high current loads.

   - The raised height design increases the stability of the connector’s contact with the PCB, helping to reduce interference and signal loss.

3. Soldering Precautions:

   - During soldering, control the temperature and time to avoid damaging the connector with excessive heat. After soldering, inspect the joints to ensure

they are secure and free of cold solder joints or short circuits.

   - Ensure proper alignment of the pads and soldering positions to prevent solder overflow and ensure stable connections.

4. Compatibility and Adaptability:

   - This connector is suitable for USB-enabled devices, particularly ideal for applications requiring high-speed data transmission and stable electrical

performance.

   - The raised height design increases the space between components, providing better compatibility, especially for compact devices.

5. Application Scenarios:

   - This connector is widely used in consumer electronics, smart devices, computer peripherals, etc., particularly in devices requiring high-speed data

transmission.

   - It is suitable for mobile devices, storage devices, computer peripherals, and applications requiring high electrical stability and resistance to interference.

6. Storage and Transportation:

   - Store the connector in a dry, mild environment to avoid moisture or high temperatures that could affect its performance.

   - During transportation, avoid heavy impacts or compression to prevent damage to the connector pins or pads.
