Product Description:

This TYPE C female connector features a 16PIN interface design, with a 2.5mm height on board and a CH (center height) of 4.05mm, including a flange

structure. The product supports high-speed data transmission and is suitable for various USB 3.0/3.1 devices. Its compact design makes it ideal for

applications with limited space, and it is widely used in consumer electronics, industrial equipment, automotive electronics, and more.

Key Features:

1. 16PIN Interface Design:

   Equipped with a 16PIN interface, supporting USB high-speed data transmission, compatible with various USB devices.

2. 2.5mm Height on Board Design:

   The height on board design ensures a more stable connection at a certain height, ideal for more complex installation environments.

3. CH=4.05mm:

   With a center height of 4.05mm, the product ensures optimal contact performance with the PCB, ensuring stable data transmission.

4. Flange Structure:

   The flange structure enhances the stability of the connection, improving durability and ensuring reliable connections over long periods of use.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring materials are safe and environmentally friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

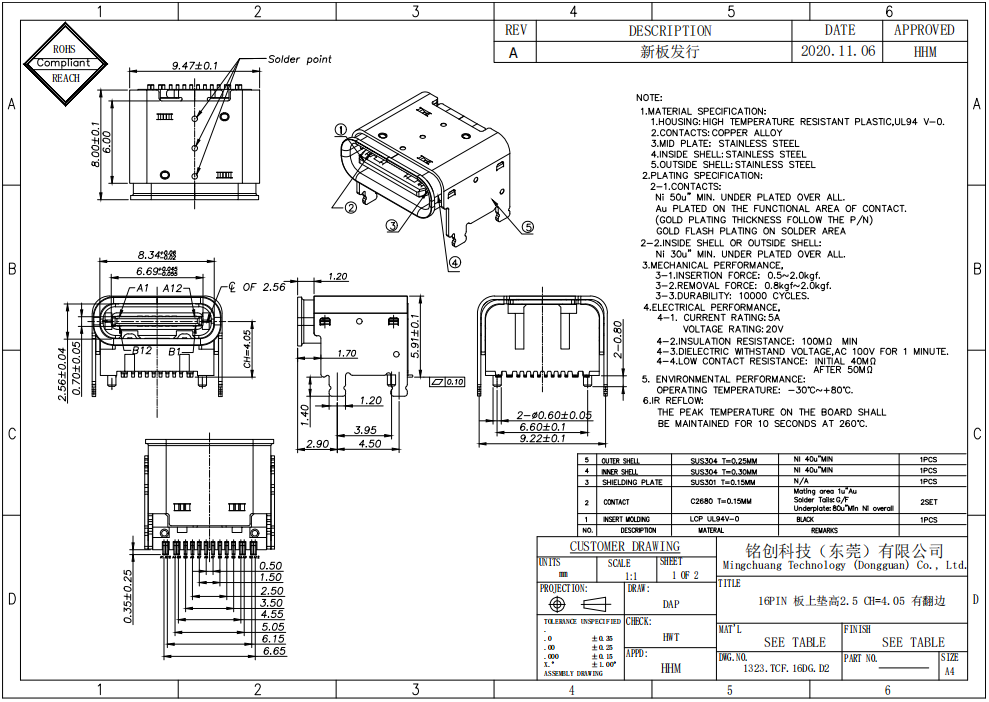

TYPE C Female Connector 16PIN Board-Mount, 2.5mm Height, CH=4.05, with Flange Usage Notes:

1. Installation and Operation:

   - During installation, ensure the connector pads are correctly aligned with the PCB to avoid poor contact or signal interference due to improper soldering.

Pay special attention to the raised height of the connector to prevent deformation due to external force.

   - With the flange design, ensure that the flange part makes stable contact with the PCB pad to enhance connection stability during installation.

2. Electrical Performance:

   - This connector uses high-conductivity materials to ensure stable electrical performance, supporting high-speed data transmission and high current load.

   - The raised height design prevents contact with other components on the PCB, improving the device's stability and resistance to interference.

3. Soldering Precautions:

   - During soldering, it is recommended to control the temperature and time appropriately to avoid damaging the connector due to excessive heat. After

soldering, check the joints to ensure they are secure and there are no cold joints or short circuits.

   - Pay attention to the stability of the flange's contact during soldering, avoiding solder overflow which could cause short circuits or poor contact.

4. Compatibility and Adaptability:

   - This connector is suitable for various USB-enabled devices, particularly ideal for applications requiring high current and high-speed data transmission.

   - The raised height design ensures connector reliability and provides extra space to accommodate other components, making it suitable for compact devices.

5. Application Scenarios:

   - This connector is widely used in consumer electronics, smart devices, computer peripherals, etc., especially for devices requiring high-frequency data

transmission and electrical stability.

   - It is suitable for mobile devices, storage devices, and computer peripherals, particularly in applications that demand high electrical performance and

stability.

6. Storage and Transportation:

   - Store the connector in a dry, mild environment to avoid moisture or high temperatures that may affect its performance.

   - During transportation, avoid heavy impacts or compression to prevent damage to the connector pins or flange.
