Industry certification

USB-IF certification: Compliant with USB 2.0 and USB PD 3.0 standards, passed TID certification (TID No.XXXX), supports 5V/3A power transmission and 480Mbps data transmission.

Safety certification: UL 498 certification, insulation withstand voltage test up to 1500V AC, terminal tension test ≥ 5N, in compliance with international electrical safety standards.

Environmental certification: Compliant with RoHS 2.0 and REACH SVHC standards, LCP materials are recyclable, and the production process has passed ISO 14001 environmental management system certification.

Reliability testing

Environmental testing: After 500 cycles of high and low temperature from -40 ℃ to 85 ℃, the contact resistance change rate is ≤ 5%; 95% RH humidity test for 48 hours without oxidation.

Mechanical testing: Contact resistance ≤ 40m Ω after 10000 insertions and removals, no deformation of the shell under 20kg pressure, and no cracking of the solder joints.

Electromagnetic compatibility: Through EN 55032 Class B radiation testing, the grounding design enhances EMI suppression capability by 40%, meeting the requirements for medical equipment use.

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation specifications

Welding parameters: reflow soldering temperature of 250 ± 5 ℃, preheating at 150-200 ℃ for 90-120 seconds; Manual welding temperature ≤ 320 ℃ to avoid high temperature damage to LCP insulation.

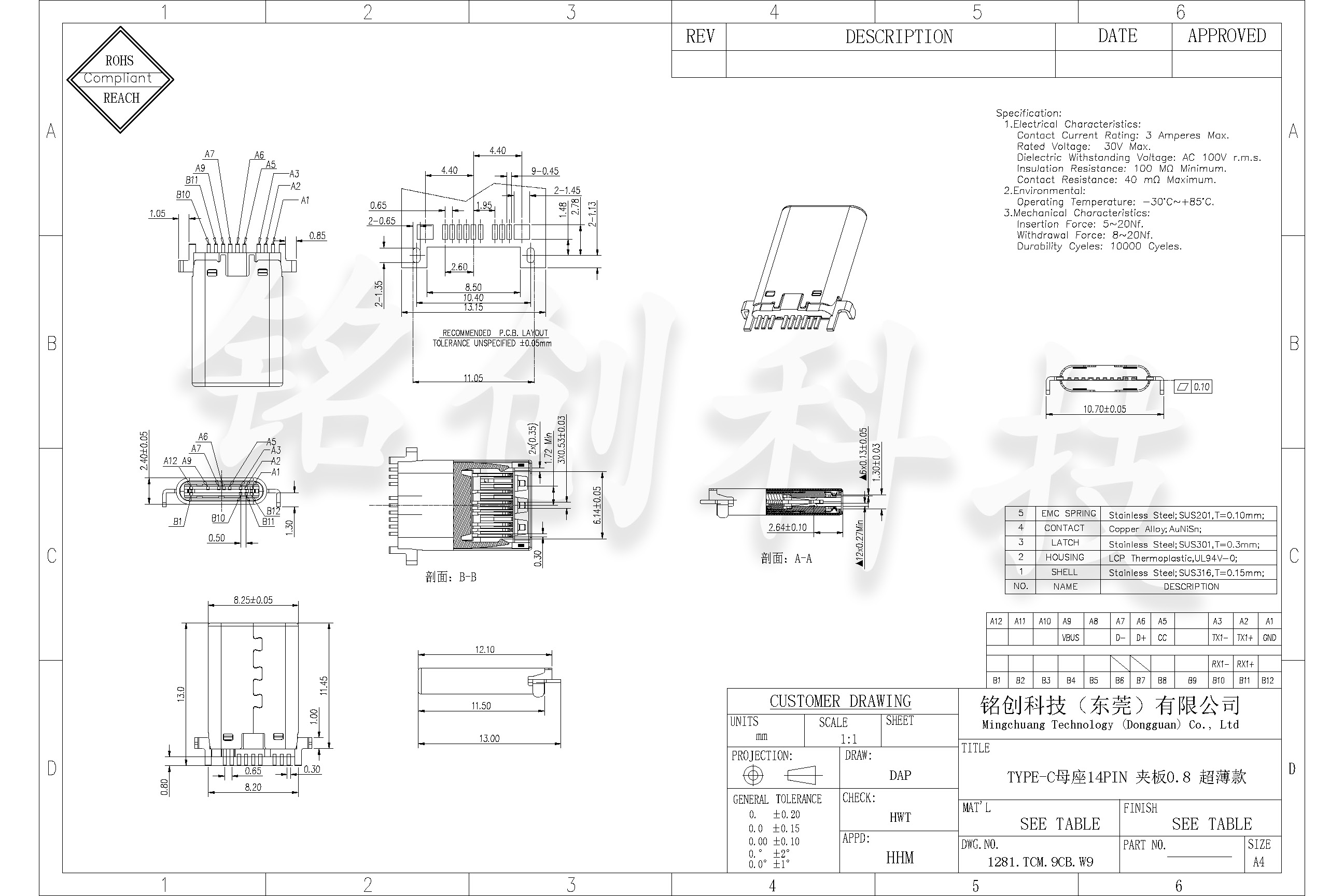

PCB design: The solder pad aperture is 0.5 ± 0.05mm, and the pin insertion depth is 0.95 ± 0.02mm; the grounding pin needs to be separately designed with a copper-clad area of ≥ 10mm ² to enhance heat dissipation.

Positioning accuracy: The tolerance between the housing positioning column and the PCB hole is controlled within ± 0.03mm to prevent poor contact caused by installation tilt.

Usage restrictions

Environmental conditions: working temperature -40 ℃ to 85 ℃, humidity ≤ 85% RH; avoid exposure to strong acid-base or salt spray environments (>5% concentration).

Current load: The recommended continuous operating current is ≤ 2.5A, and the instantaneous peak current is ≤ 4A. Paired with E-Marker chip cable, it can achieve 100W fast charging.

Maintenance suggestions

Regular inspection: Use a 10x magnifying glass every quarter to check whether the solder joints are cracked and whether the terminals are oxidized; Wipe with anhydrous alcohol during cleaning, and do not use sharp tools to damage the gold plating layer.

Long term storage: When not in use, it should be sealed in a dry environment (humidity ≤ 60%). It is recommended to use a dust cap to protect the interface and prevent foreign objects from entering.

Compatibility notes

Device matching: It needs to be used in conjunction with a TYPE C female socket that complies with the USB-IF standard to avoid protocol incompatibility caused by non-standard interfaces.

Cable selection: USB 2.0 certified cables are required for data transmission, and it is recommended to use cables with 5A current carrying capacity for charging.
