Industry certification:

USB-IF certification: Compliant with USB 2.0 and PD 3.1 standards, supporting the EMarker protocol.

Environmental certification: Passed EU RoHS 2011/65/EU and ELV 2000/53/EC certification, halogen-free materials comply with IEC 62680-1-3 requirements.

Safety certification: UL 94 V-0 flame retardant rating, CE/FCC electromagnetic compatibility certification, IPX7 waterproof rating tested by a third-party laboratory.

Industry standards:

Vehicle applications meet the AEC-Q200 passive component testing standards (vibration, shock, temperature cycling).

Industrial scenarios comply with ISO 13849-1 mechanical safety requirements, and medical equipment applications can be customized for biocompatibility testing (ISO 10993).

Production control:

Adopting an ERP system for full traceability, each batch of products undergoes 100% electrical performance testing (Hi Pot, contact impedance) and salt spray testing (48 hours).

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation requirements:

The welding temperature should be controlled within 255 ° C. It is recommended to use nitrogen protection reflow soldering to avoid terminal oxidation.

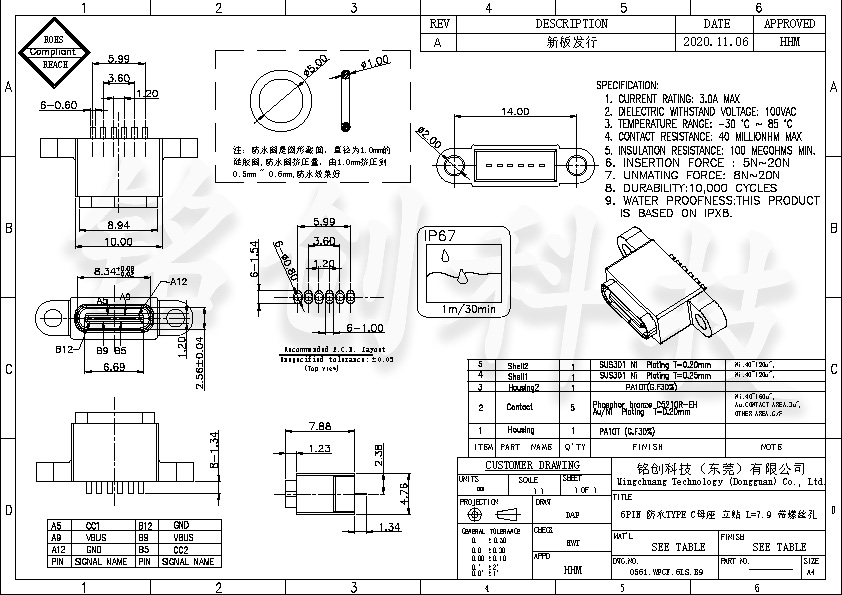

The double ear screw holes need to be precisely matched with PCB through holes (tolerance ± 0.05mm), and the screw torque should be controlled at 0.5-0.8N · m to avoid deformation of the shell.

Usage restrictions:

Non waterproof models (IPX0) should not be exposed to humid environments, and waterproof models need to check the wear of the sealing ring after long-term use.

When applying high current, it is necessary to ensure that the thickness of the PCB copper foil is ≥ 35 μ m, and it is recommended to use heat sinks to avoid overheating.

Compatibility Description:

When connected to USB 3.0 devices, the data transfer rate automatically decreases to 480Mbps and the power output is limited to 5V/3A.

Using non authenticated cables may result in PD protocol handshake failure. It is recommended to pair them with electronic marker cables certified by USB-IF.

Maintenance suggestion:

Regularly clean the dust inside the interface, use compressed air or anti-static brushes to avoid short circuits caused by metal foreign objects.

When not in use for a long time, it is recommended to use a dust cover to protect the interface and prevent oxidation and mechanical damage.
