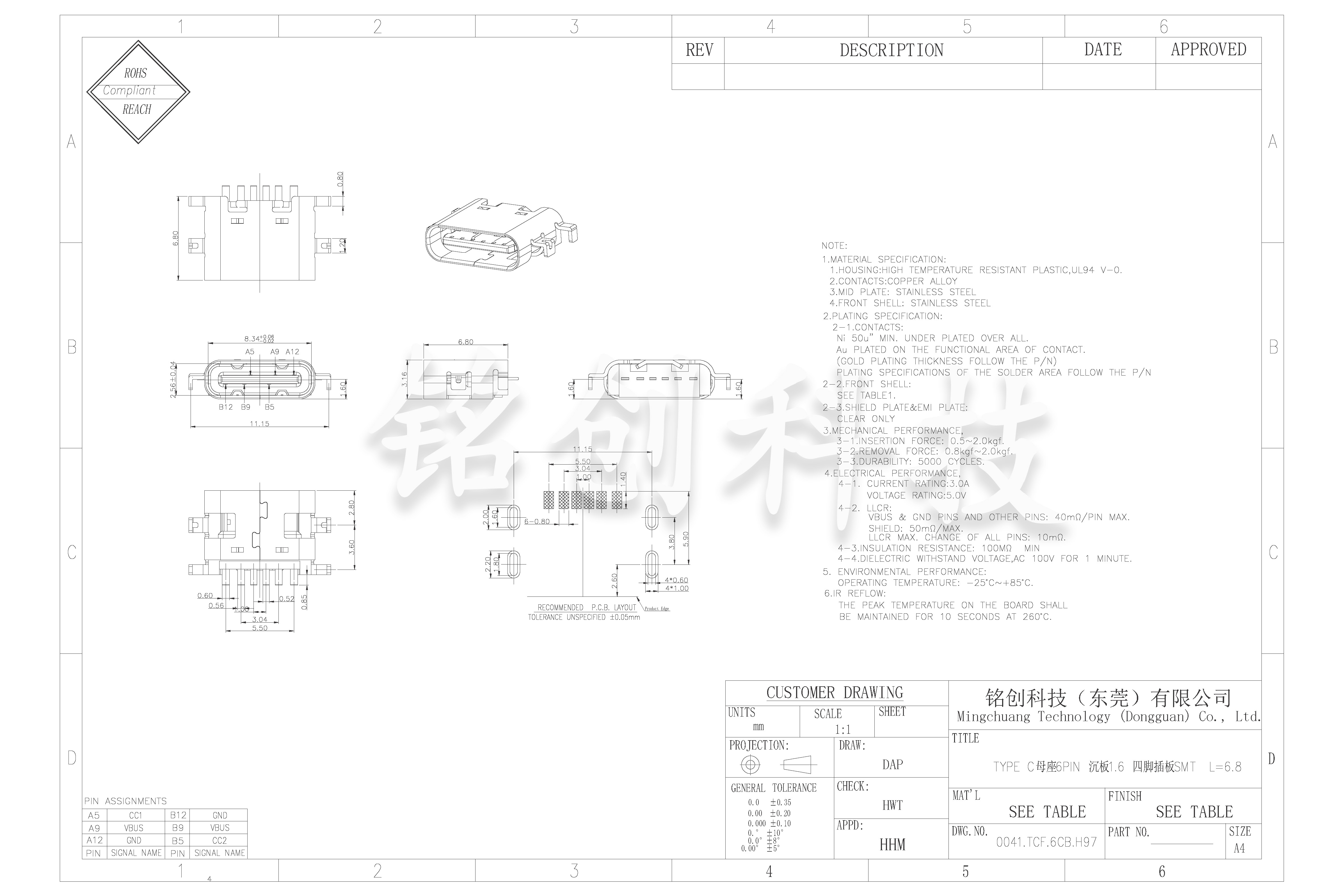

Industry certification

USB-IF certification: Compliant with USB 3.1 standard, supports 10Gbps data transmission and 3A power transmission.

EN IEC 62680-1-3 compliance: The female socket design meets the requirements of the EU unified charging interface regulation and is suitable for export equipment.

UL certification: Passed safety testing by Underwriters Laboratories in the United States, with insulation performance and electrical strength meeting standards.

Environmental standards

RoHS compliance: All raw materials (brass, LCP) are free from harmful substances such as lead and mercury.

Green production: The production process strictly controls waste emissions, and LCP materials can be recycled and reused.

Reliability testing

Salt spray test: There is no significant corrosion in a 24-hour salt spray environment.

Temperature shock test: cycled 5 times from -40 ℃ to+85 ℃, with no abnormal performance.

Plug and unplug lifespan: Contact resistance ≤ 50m Ω after 10000 plug and unplug cycles.

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation specifications

Welding parameters: It is recommended to reflow at a temperature of 250 ℃± 5 ℃ and preheat at 150-200 ℃ for 90-120 seconds to avoid high temperature damage to the LCP insulator.

Pad matching: The size of PCB board pads should be strictly matched with the pins (with an error of ≤± 0.1mm) to prevent virtual soldering.

Usage environment

Temperature range: -40 ℃ to+85 ℃, avoid prolonged exposure to high temperatures (>85 ℃) or high humidity (>85% RH) environments.

Magnetic field interference: Stay away from strong magnetic fields (>100mT) to prevent data transmission signal attenuation.

Maintenance suggestions

Regular inspection: Clean the oxide layer on the surface of the terminal every quarter, use a soft cloth dipped in specialized cleaning agent to wipe, and avoid damage from sharp tools.

Long term storage: Separate the male and female sockets to prevent long-term compression and deformation of the terminals.

Compatibility notes

Power matching: Ensure that the input voltage/current of the equipment is within the rated range of the mother base (3A/5V) to avoid overload.

Interface specifications: Prioritize compatibility with male connectors that comply with the USB-IF standard to avoid compatibility issues caused by non-standard interfaces.
