Product Description:

This product is a high-performance Type-C USB female connector with a 6Pin interface, 0.8mm board mount design, and a 4-pin board mount structure,

conforming to SMT standards. It supports data transmission and features a stainless steel housing to ensure durability and excellent electrical performance.

It is widely used in various consumer electronics, industrial equipment, and communication fields, ideal for applications requiring stable data connections.

Key Features:

1. Data Transmission Support:

   This product supports USB standard data transmission, suitable for high-speed data connection needs.

2. 6Pin Interface Design:

   The 6Pin interface design ensures efficient and stable data transmission, meeting USB interface technical requirements.

3. Board Mount Design:

   The board mount design provides a more stable electrical contact, making it suitable for precise and reliable connections.

4. 4-Pin Board Mount Structure:

   The 4-pin board mount structure enhances connection stability, suitable for automated production and efficient installation.

5. Stainless Steel Housing:

   The stainless steel housing enhances the product’s durability and anti-interference capability, extending its lifespan.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures that the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

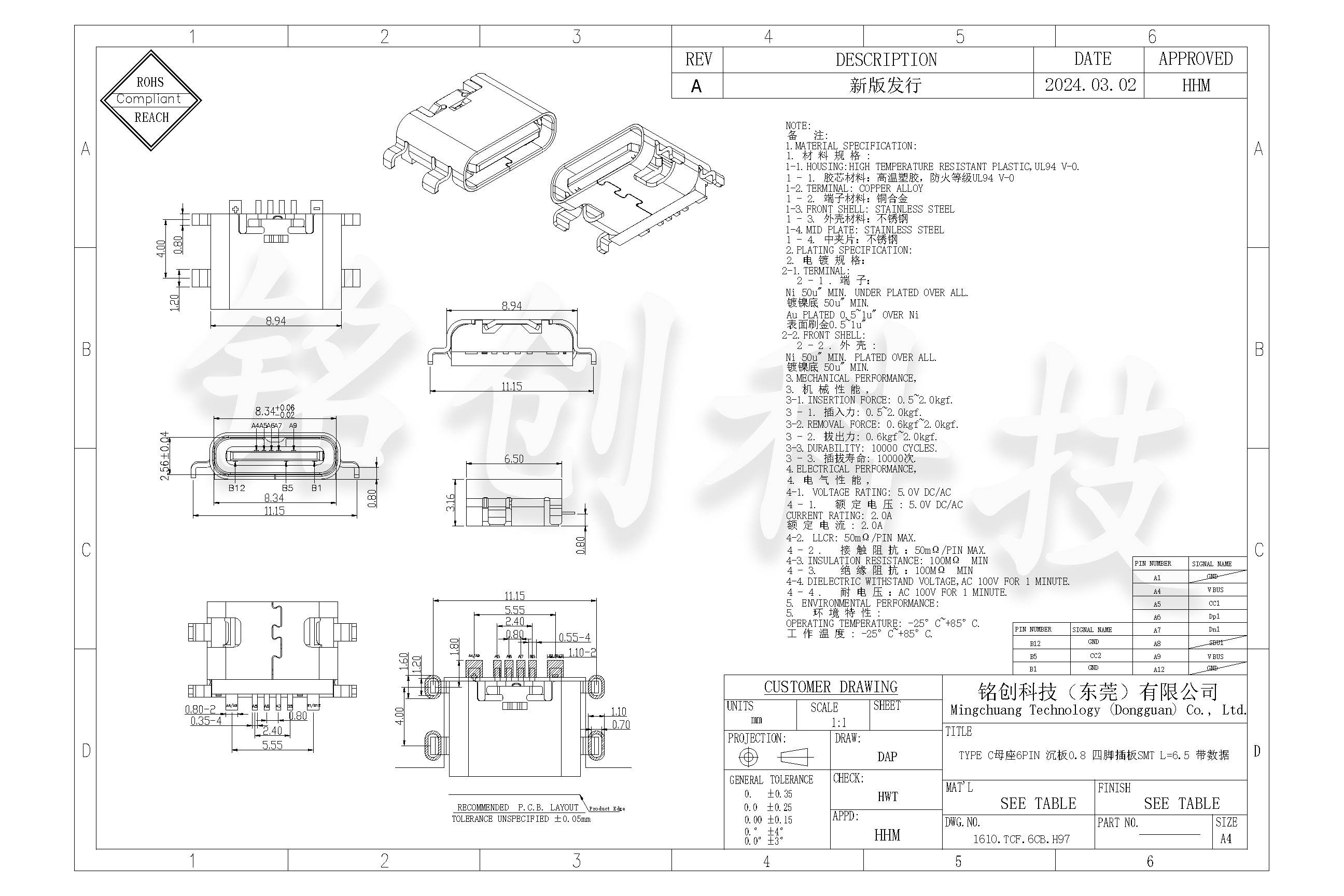

Type-C Female Connector 6Pin SMD 0.8mm Four-Pin SMT L=6.5 Supports Data Transmission Stainless Steel USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering area is clean and free of oil or dust to maintain soldering quality.

   - The soldering temperature should be within the recommended range to avoid damage to the connector or PCB.

   - The connector should be aligned with the PCB and securely soldered to prevent poor contact or loosening.

2. Electrical Performance:

   - This product supports USB 3.1 data transfer standards, offering up to 10Gbps data transfer speed.

   - Made of stainless steel for excellent corrosion resistance, ensuring long-term stable operation.

   - The four-pin SMT design ensures reliable electrical connections for high-performance applications.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid damaging the connector or plug.

   - Ensure proper alignment between the plug and the socket to prevent misalignment and poor contact.

4. Material Properties:

   - The housing is made from stainless steel, providing excellent corrosion resistance and wear resistance.

   - The pins are made from high-conductivity materials, ensuring stable data transmission and electrical connection.

5. Operating Environment:

   - This product is suitable for consumer electronics, computers, communication devices, and other applications requiring high-speed data transmission.

   - Avoid use in high-temperature, humid, or highly corrosive environments to ensure stable performance.

6. Storage Conditions:

   - Store unused products in a dry, ventilated environment, away from direct sunlight.

   - Avoid storing in extreme temperatures to prevent material aging or performance degradation.
