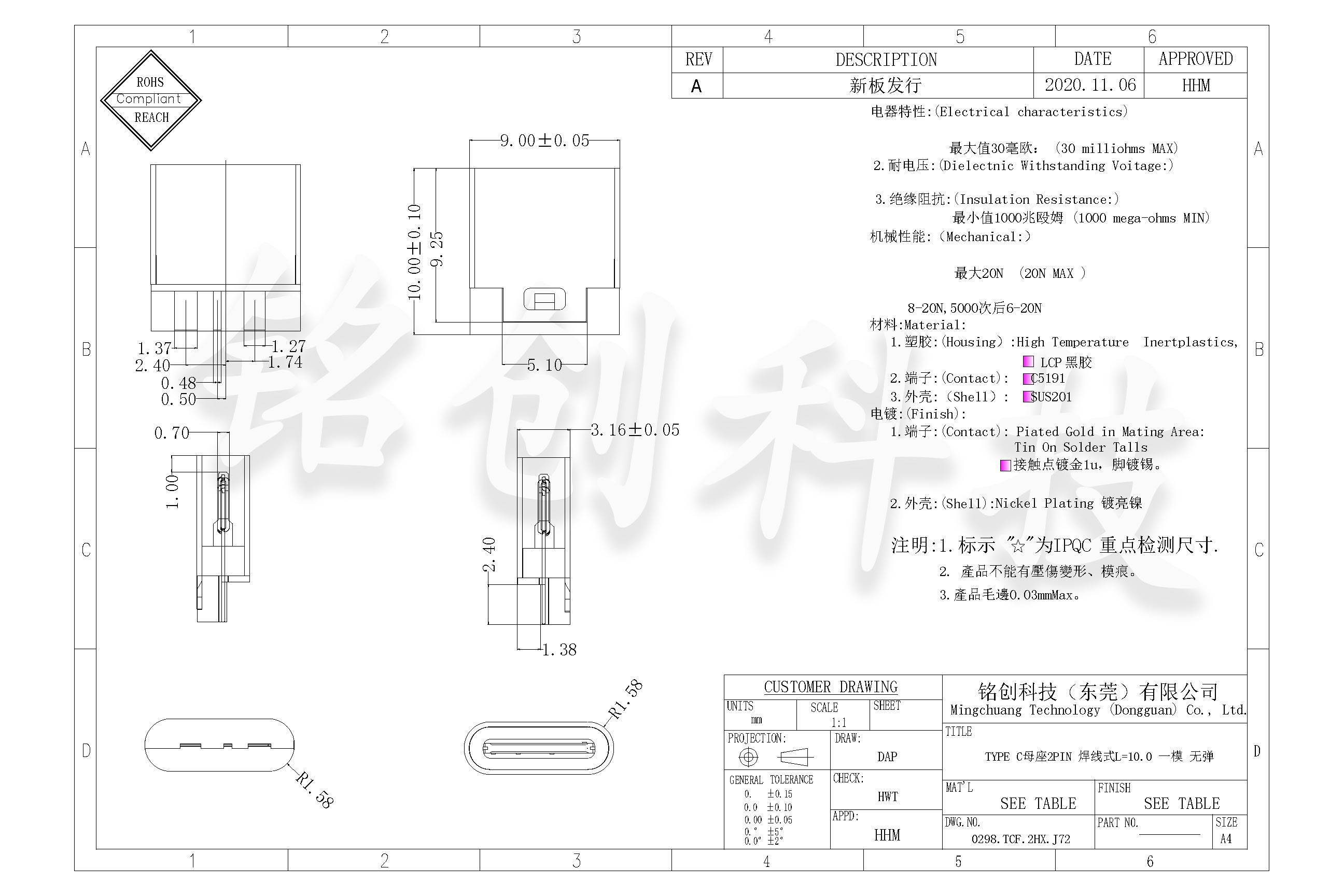

Certification and Standards

Environmental certification: Compliant with RoHS 2.0 and REACH SVHC requirements, LCP material is recyclable, production process is lead-free, and certified by ISO 14001 environmental management system.

Safety certification: Passed UL 498 electrical safety test, withstand voltage test 1000V AC/1min without breakdown, terminal insulation strength ≥ 500V DC.

Compatibility: Compliant with USB-IF Type-C mechanical specifications, can be used with standard TYPE C male connectors (only power pins), and is compatible with mainstream charging cables in the market.

Reliability testing

Welding wire tension: The tensile strength of 3A wire (AWG24) after welding is ≥ 5N.

Insertion and extraction lifespan: Contact resistance ≤ 60m Ω after 500 insertions and removals with a male head (typical value for non elastic structures).

High temperature aging: After being stored at a constant temperature of 85 ℃ for 1000 hours, the change in contact resistance is ≤ 10%.

Humidity test: Store in a 95% RH environment for 48 hours, with an insulation resistance of ≥ 500M Ω.

Environmental testing:

High temperature aging: After being stored at a constant temperature of 85 ℃ for 1000 hours, the change in contact resistance is ≤ 10%.

Humidity test: Store in a 95% RH environment for 48 hours, with an insulation resistance of ≥ 500M Ω.

Mechanical testing:

Welding wire tension: The tensile strength of 3A wire (AWG24) after welding is ≥ 5N.

Insertion and extraction lifespan: Contact resistance ≤ 60m Ω after 500 insertions and removals with a male head (typical value for non elastic structures).

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation specifications

Welding parameters:

Manual welding: temperature 280 ± 10 ℃, welding time ≤ 3 seconds, to avoid LCP insulation overheating and softening.

Automated welding: It is recommended to use infrared preheating (150 ℃/60 seconds)+wave soldering (260 ℃/3 seconds).

Wire selection: It is recommended to use tin plated copper wire (cross-sectional area ≥ 0.5mm ²), insulation layer temperature resistance ≥ 105 ℃, and stripping length 2.0 ± 0.2mm.

Stress relief: It is recommended to add heat shrink tubing at the root of the wire after welding to prevent bending and fracture of the solder joint.

Usage environment

Temperature and humidity range: working temperature -20 ℃ to 85 ℃, storage temperature -30 ℃ to 90 ℃, humidity ≤ 85% RH (no condensation).

Taboo scenario: Prohibited for data transmission or high-frequency plugging scenarios, avoid contact with highly corrosive liquids (such as alcohol, gasoline).

Maintenance suggestions

Regular inspection: visually inspect the solder joints for cracking and the wires for oxidation every six months. It is recommended to use a multimeter to measure the contact resistance (≤ 50m Ω is normal).

Long term storage: Unsoldered mother sockets should be sealed and stored in a dry environment (humidity ≤ 60%) to avoid terminal oxidation, with a storage period of ≤ 3 years.

Compatibility notes

Functional limitations: Only supports power transmission and cannot achieve data communication or PD fast charging protocol (requires additional integration of protocol chips).

Male head matching: Use TYPE C male heads that only contain VBUS/GND pins (such as some charging cables), as fully functional male heads may cause pin short circuits.
