Product description:

This product is a high-performance waterproof Type-C USB socket, which adopts 24Pin interface and sinker design, conforms to industry standards and has

two fixed feet installation methods. The design meets the waterproof requirements and is suitable for the connection of electronic equipment in various

harsh environments. It has strong stability and reliability and is suitable for high-density and high-frequency signal transmission.

Main features:

1. Waterproof performance:

This product has waterproof design, can run stably in humid environment, and ensures that the equipment is not infringed by moisture for long-term use.

2. Interface design:

24Pin interface supports high-speed data transmission, conforms to USB Type-C standard, and is suitable for the connection requirements of various devices.

3. Sinking plate 1.4mm design:

1.4mm sinker design is adopted to improve the connection stability and meet the requirements of high-frequency electronic equipment.

4. Two fixed feet structure:

Provide a two-foot fixing scheme to increase the firmness and stability of installation and ensure the reliability of long-term use.

Statement of compliance:

This product strictly follows international and industry certification standards to ensure its compliance in safety and environmental protection:

1. ISO 9001 quality management system certification:

Ensure that products meet international quality management standards in the design and production process.

2. REACH certification:

Comply with EU regulations on registration, evaluation, authorization and restriction of chemicals, and ensure that the materials are harmless and

environmentally friendly.

3. RoHS certification:

Comply with the EU directive on the restriction of harmful substances in electronic and electrical equipment, ensure that the products do not contain

harmful substances and protect the health of users.

Contact information:

-Hotline: 13310802726

-E-mail: mc13310802726@163.com

-Company Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further understanding, please feel free to contact us and we will provide you with professional support.

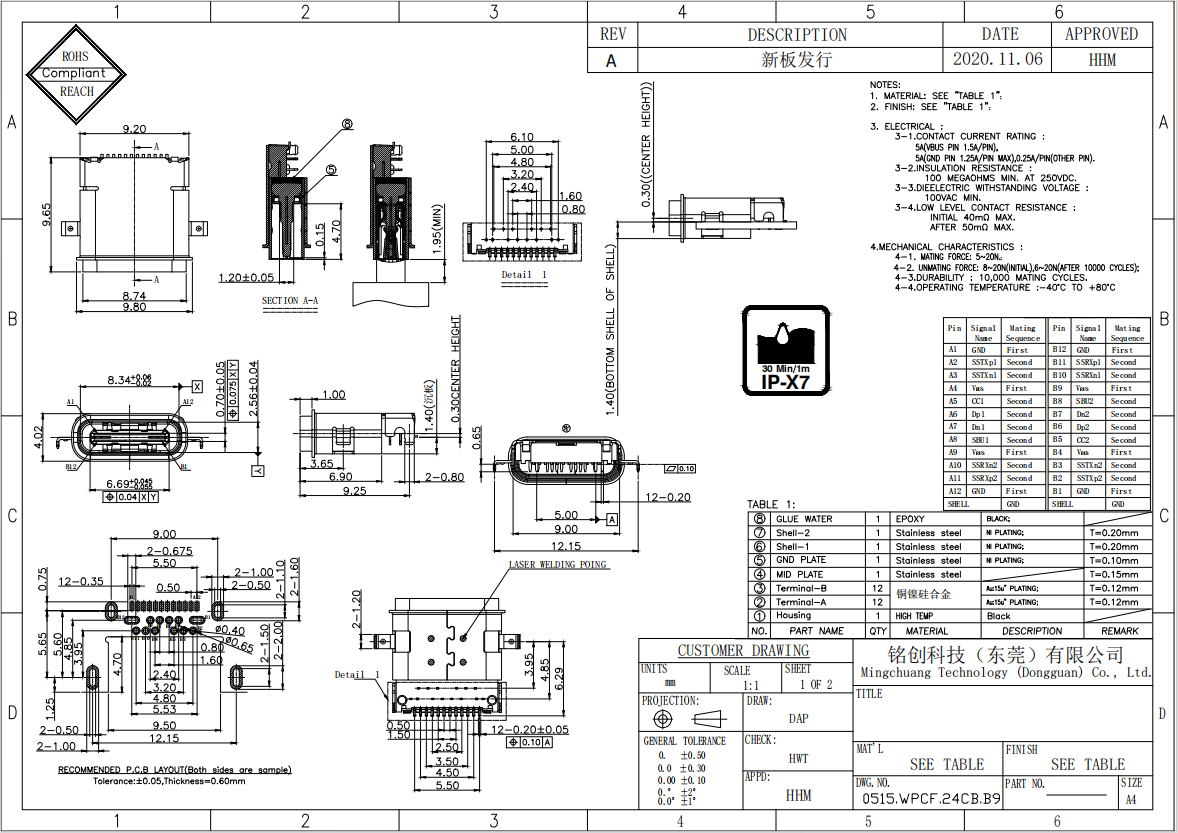

Waterproof Type-C interface, 24Pin sinker, 1.4mm, two fixed feet, L=9.65 USB socket, and precautions for use:

1. Installation and welding:

-Please ensure that the welding surface is clean during installation, so as to avoid oil pollution or dust affecting the welding quality.

-The welding temperature should be controlled within the specified range. Excessive temperature may affect the stability of the internal structure of the interface.

-The two fixing feet of the socket should be firmly welded to ensure the reliability and stability of the connection.

2. Waterproof performance:

-This product meets the waterproof standard and can be used in humid environment, but please ensure that the sealing ring is intact to avoid sealing failure caused by external factors.

-Long-term exposure to water may affect the waterproof effect of the interface, so please avoid soaking the interface in water for a long time.

3. Plug-in operation:

-Please ensure that the operation is gentle when plugging and unplugging, so as to avoid excessive contact between the plug and the socket, so as to avoid damaging the contact points.

-When plugging and unplugging, it should follow the forward plugging and unplugging, so as to avoid the asymmetric insertion of the plug into the interface, which may cause the interface damage or poor contact.

-Plugging times should be controlled within the design requirements to avoid excessive wear.

4. Electrical performance:

-Please use it within the specified current and voltage range of the product to ensure normal operation and prolong the product life.

-Avoid current overload or abnormal voltage to prevent damage to interfaces and related circuits.

5. Cleaning and maintenance:

-If the interface surface is contaminated with moisture or dust, please wipe it with a clean and soft cloth in time to avoid using chemical cleaners.

-Check the sealing ring, pins and other parts of the interface regularly to ensure that they are not damaged or aged, and maintain waterproof performance.

6. Application environment:

-This product is suitable for use in humid environment, but long-term exposure to high temperature, high humidity or corrosive environment is not recommended.

-Try to avoid strong mechanical impact or scratches on the interface.

7. Storage conditions:

-Unused products should be stored in a dry, cool and ventilated environment to avoid direct sunlight.

-Please avoid storing the product in an environment with too high or too low temperature, so as not to affect the product performance.
