Product Description:

This product is a high-performance Type-C USB male connector, featuring a 24Pin interface, 0.8 clamp design, and supports up to 15A high current

transmission, in compliance with USB interface standards. It is suitable for power and data transmission for various electronic devices. The product

offers excellent current handling capacity and stable connectivity, making it widely used in consumer electronics, industrial equipment, and power

systems.

Key Features:

1. 15A High Current Support:

   Supports up to 15A high current transmission, meeting the power needs of high-power devices, suitable for power systems and high-power

applications.

2. 24Pin Interface Design:

   The 24Pin interface design supports high-speed data transmission and stable power delivery, suitable for various USB devices.

3. 0.8mm Clamp Design:

   The 0.8mm clamp design ensures stable connection, enhancing the product's durability and reliability.

4. High Current Handling Capacity:

   The product is capable of handling up to 15A current, making it suitable for applications requiring high-power supply.

5. USB Interface Compatibility:

   Supports USB interface standards, compatible with a wide range of USB devices, ideal for charging and data transmission.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures that the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and

environmentally friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

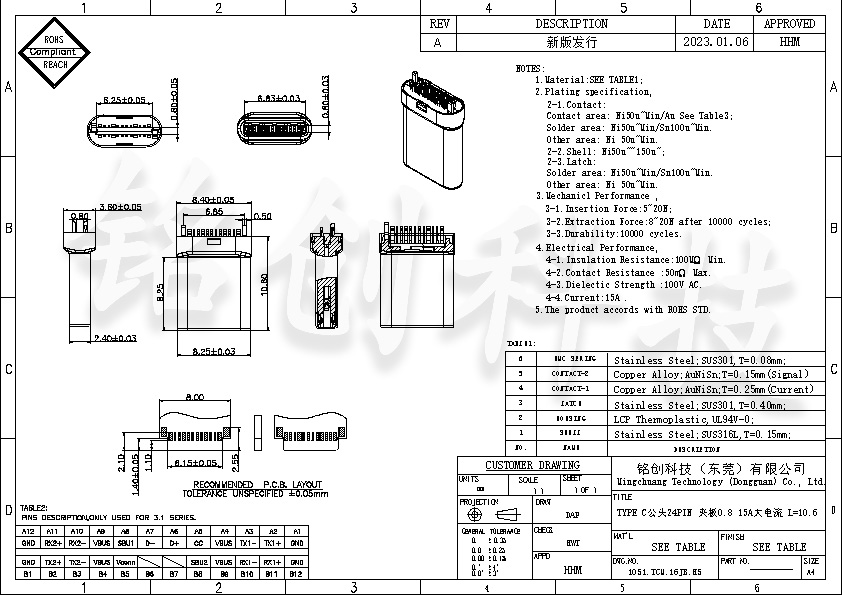

Type-C Male Connector 24Pin Clamping Board 0.8mm 15A High Current L=10.6 USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering surface is clean before installation to avoid oil or dust affecting the soldering quality.

   - The soldering temperature should be controlled within the recommended range to prevent damage to the internal structure of the connector.

   - The clamping board needs to be securely fixed to ensure stable long-term connections.

2. Electrical Performance:

   - This product is designed to support up to 15A current, ensuring safe operation under high current conditions.

   - Ensure that the connectors and cables used match the required current to avoid overloading.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid excessive impact between the plug and socket, which may damage the contact points.

   - Always follow the correct insertion direction to avoid misalignment and damage to the connector.

   - Limit the number of insertions and extractions within the specified range to avoid excessive wear.

4. Clamping Board Design:

   - The clamping board design ensures a more stable connection, especially for high-current applications.

   - Regularly check the clamping board for any loosening or damage to maintain a secure connection.

5. Cleaning and Maintenance:

   - If the interface accumulates dust or moisture, clean it with a soft, dry cloth, avoiding the use of corrosive cleaning agents.

   - Periodically inspect the connector’s solder joints and clamping board components to ensure they are not loose or corroded.

6. Operating Environment:

   - This product is suitable for devices and applications requiring high-current transmission but should not be exposed to high temperatures or high

humidity for extended periods.

   - Avoid exposing the connector to strong mechanical impacts to preserve its performance and lifespan.

7. Storage Conditions:

   - Unused products should be stored in a dry, cool, and well-ventilated environment, away from direct sunlight.

   - Avoid storing the product in environments with extreme high or low temperatures to maintain optimal performance.

For more information or technical support, please contact us:

- Hotline: 13310802726

- Email: mc13310802726@163.com
