Industry certification:

USB-IF certification: compliant with USB PD 3.0 and USB 2.0 standards;

Safety certification: Passed UL 498 withstand voltage test (1000V AC/1min no breakdown), in compliance with IEC 62368-1 safety specifications;

Environmental certification: RoHS 2.0/REACH compliant, LCP material is recyclable.

Reliability testing:

Environmental testing: cycled 500 times from -40 ℃ to 85 ℃, with a contact resistance change of ≤ 8%;

Waterproof test: IPX7 (30 minutes at a depth of 1 meter), IPX9K (high-pressure water spray at 80 ℃), no leakage;

Humidity test: Store at 95% RH for 48 hours, with insulation resistance ≥ 500M Ω.

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

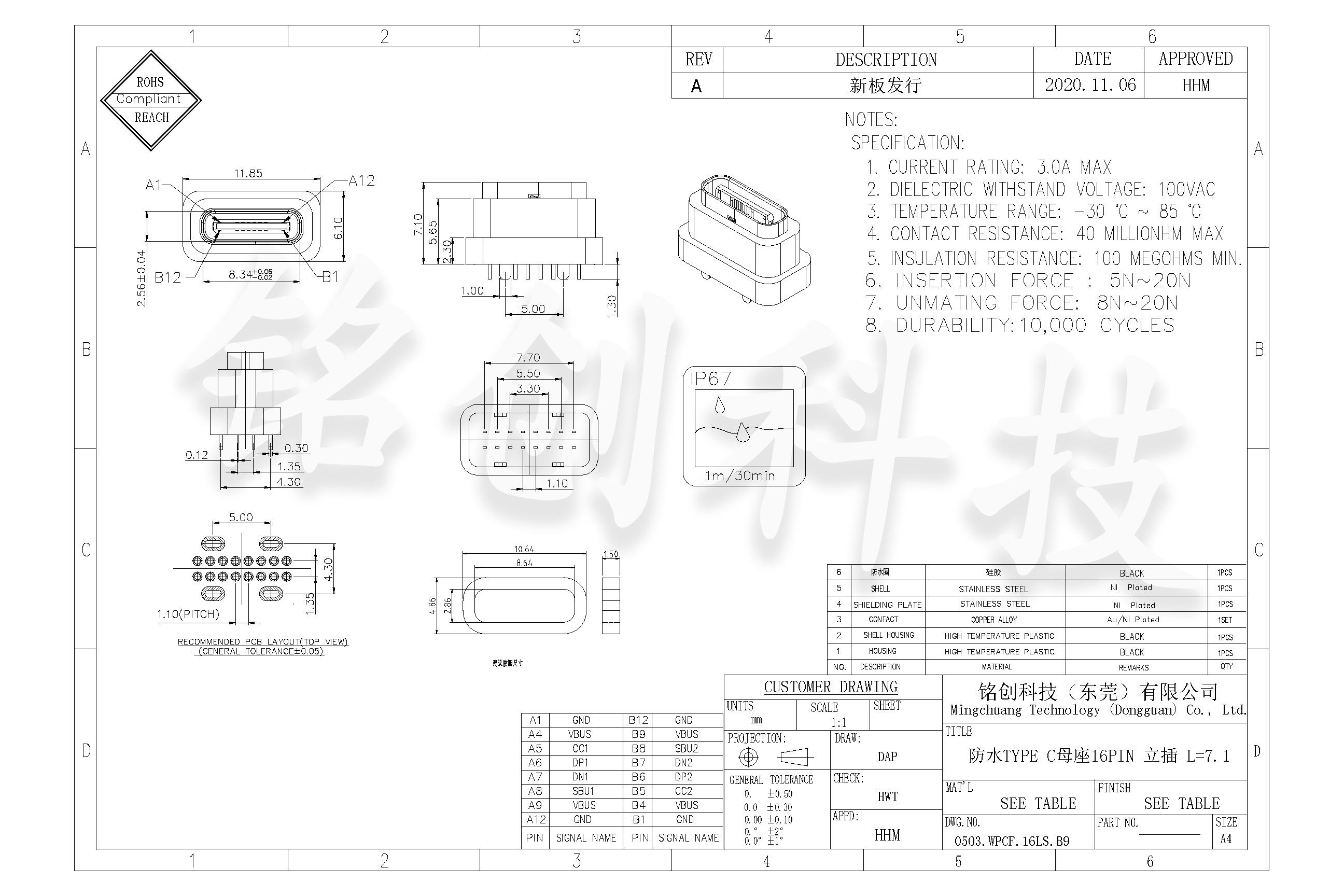

Installation specifications:

Welding parameters: Preheat reflow soldering at 150-200 ℃ for 90 seconds, with a peak temperature of 250 ± 5 ℃; Manual welding temperature ≤ 320 ℃, time ≤ 3 seconds.

PCB design: solder pad spacing tolerance ± 0.05mm, power layer copper coating ≥ 15mm ², signal layer to power layer spacing ≥ 0.3mm.

Positioning requirements: Use fixtures to calibrate verticality, with a tilt angle of ≤ 1.5 °, to prevent pin breakage under stress.

Usage environment:

Working temperature -20 ℃ to 85 ℃, avoid strong electromagnetic (>50mT), high vibration (>20g), or acid-base environment (pH<4 or pH>10).

Maintain storage:

Regularly clean the terminals with anhydrous alcohol and prohibit metal tools;

Uninstalled mother seat sealed in moisture-proof bag (humidity ≤ 60%), storage period ≤ 2 years.

Compatibility Tip:

Suitable for non full function TYPE C male connectors, it is recommended to use shielded cables for high-speed transmission;

To achieve 100W fast charging, an external PD protocol chip (such as Renesas RAA227001) is required.
