Industry certification:

Certified with USB PD 3.0/USB 2.0, compliant with UL 498 withstand voltage test (1000V AC/1min no breakdown), RoHS 2.0/REACH environmental compliance.

Reliability testing:

Environmental testing: 500 cycles at -40 ℃~85 ℃, with a contact resistance change of ≤ 8%;

Waterproof test: IPX7 (30 minutes at a depth of 1 meter), IPX9K (high-pressure water spray at 80 ℃), no leakage;

Humidity test: Store at 95% RH for 48 hours, with insulation resistance ≥ 500M Ω.

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation specifications:

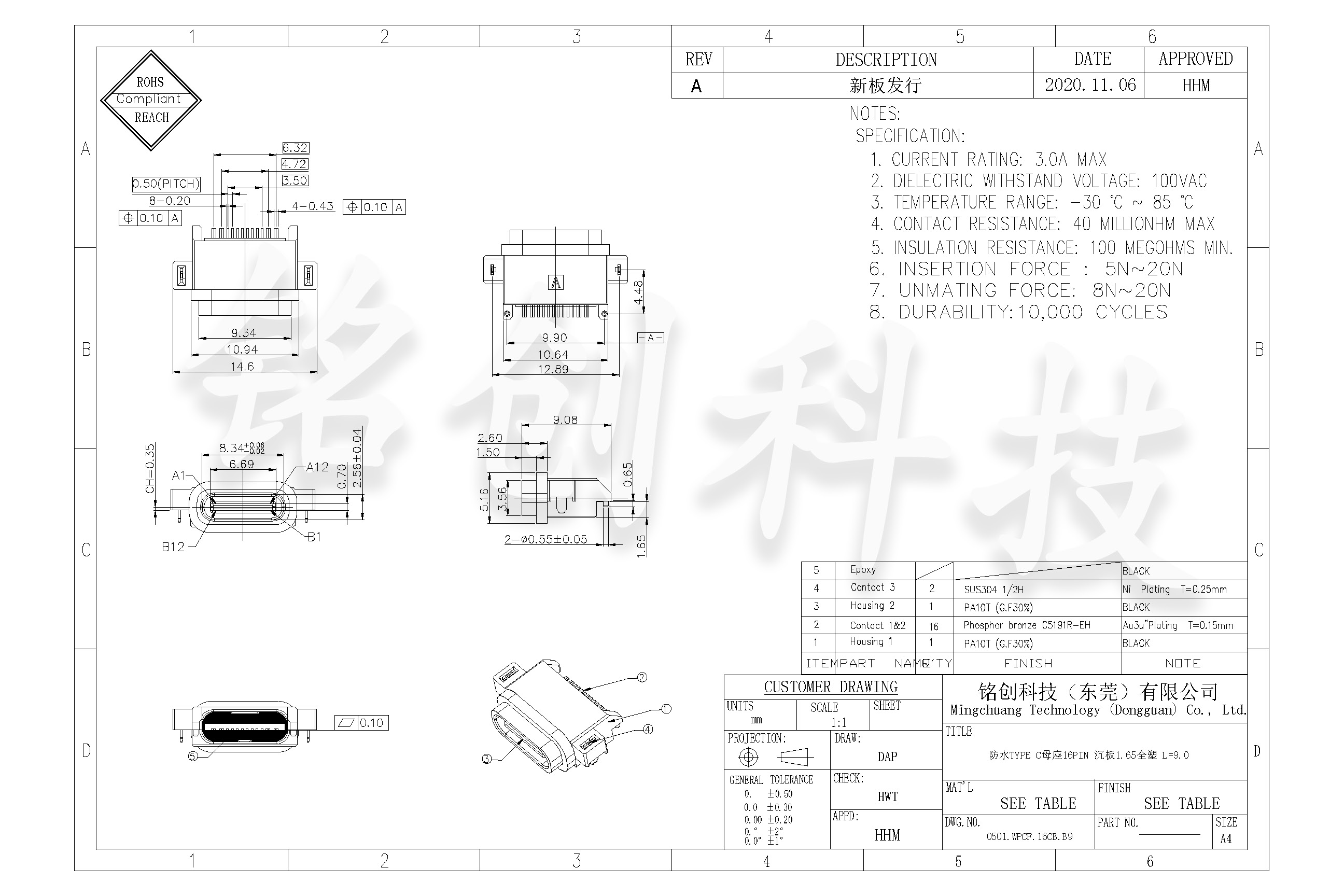

Reflow soldering temperature of 250 ± 5 ℃, reserved depth of 1.65mm in PCB sinking area, and solder pad spacing tolerance of ± 0.05mm;

It is recommended to connect the grounding pin with ≥ 20mm ² copper cladding, and the distance between the power layer and the signal layer should be ≥ 0.3mm.

Usage environment:

Working temperature -20 ℃~85 ℃, avoid strong electromagnetic (>50mT), high vibration (>20g) or acid-base environment (pH<4 or pH>10).

Maintain storage:

Regularly clean the terminals with anhydrous alcohol and prohibit sharp tools;

Store the uninstalled mother seat in an environment with a humidity of ≤ 60% and a storage period of ≤ 24 months.

Compatibility Description:

Suitable for non full function TYPE C male connectors, high-speed transmission requires shielded cables;

To achieve 100W fast charging, an external PD protocol chip (such as IP2112) is required.
