Product Description:

This product is a high-performance Type-C USB female connector with a 16Pin interface, 0.8 clamp design, and pin structure. It complies with USB 2.0/3.0

standards and supports high-speed data transmission, suitable for connecting various electronic devices. The clamp design allows for easy installation and

 removal, making it ideal for automated production and efficient assembly.

Key Features:

1. USB 2.0/3.0 Compatibility:

   Supports both USB 2.0 and USB 3.0 standards, providing high-speed data transfer to meet the connection needs of most devices.

2. 16Pin Interface Design:

   The 16Pin design supports high-speed data transmission and ensures stable connections with various USB devices.

3. 0.8mm Clamp Design:

   The 0.8mm clamp design ensures stable connectivity and durability, suitable for different installation environments.

4. Pin Structure:

   The pin design provides a firmer installation and enhances connection stability, suitable for through-hole mounting.

5. Clamp Installation:

   The clamp installation design allows for quick installation and removal, making it ideal for automated production and efficient assembly.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures that the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

 friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

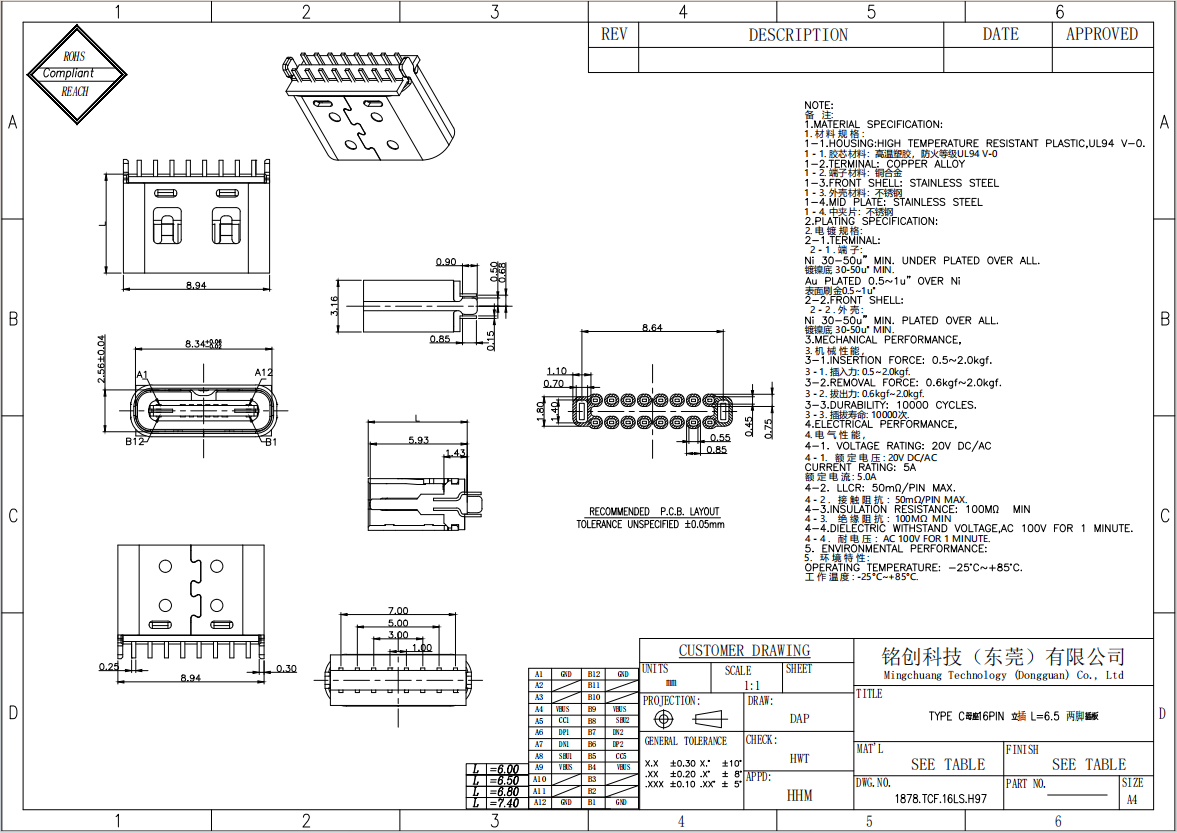

Type-C Female Connector 16Pin Clamping Board 0.8mm L=6.5 with Legs USB Interface Clamping Type Compatible with USB 2.0/3.0 Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering surface is clean and free from oil or dust to maintain high soldering quality.

   - When using the clamping structure, ensure both sides of the clamping board are firmly secured to prevent loosening.

   - Soldering temperature must be controlled within the recommended range to prevent damage to the internal structure.

2. Electrical Performance:

   - This product supports USB 2.0 and USB 3.0 standards, providing stable data and power transmission capabilities.

   - Operate within the rated voltage and current range to extend the product's lifespan.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid excessive impact on the plug and socket.

   - Follow the correct insertion direction to prevent connector damage from misalignment.

   - Limit the number of insertions and extractions within the specified range to avoid performance degradation due to wear.

4. Material Properties:

   - Made of durable materials suitable for various applications, but avoid exposure to corrosive gases.

   - The design with legs enhances soldering reliability and ensures long-term stability.

5. Cleaning and Maintenance:

   - If dust or moisture accumulates on the interface, clean it with a soft, dry cloth, avoiding the use of corrosive cleaning agents.

   - Regularly inspect the clamping board and solder legs for any loosening or corrosion.

6. Operating Environment:

   - Suitable for consumer electronics and industrial control applications but not recommended for prolonged use in high-humidity or high-temperature

 environments.

   - Protect the connector from strong mechanical impacts to maintain its performance.

7. Storage Conditions:

   - Store unused products in a dry, cool, and well-ventilated environment, away from direct sunlight.

   - Avoid storing the product in extreme high or low temperatures to prevent material aging.

For more information or technical support, please contact us:

- Hotline: 13310802726

- Email: mc13310802726@163.com
