Industry certification:

USB-IF certification (USB3.1 Geni/PD3.0), RoHS 2.0 (lead-free and halogen-free), REACH SVHC 235 testing passed.

CE/FCC electromagnetic compatibility certification, conducted interference<40dB μ V (30MHz-1GHz), radiated interference<30dB μ V (30MHz-10GHz).

UL certification (UL 62368-1), insulation material flame retardant rating V-0, withstand voltage test 1500V AC/1 minute without breakdown.

Production control:

Sampling is conducted for each batch: high current testing (5A for 1 hour, temperature rise ≤ 30 ℃), dynamic testing of contact impedance (Δ R<15% after 10000 insertions and removals), and metallographic section analysis of solder joint reliability.

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation requirements:

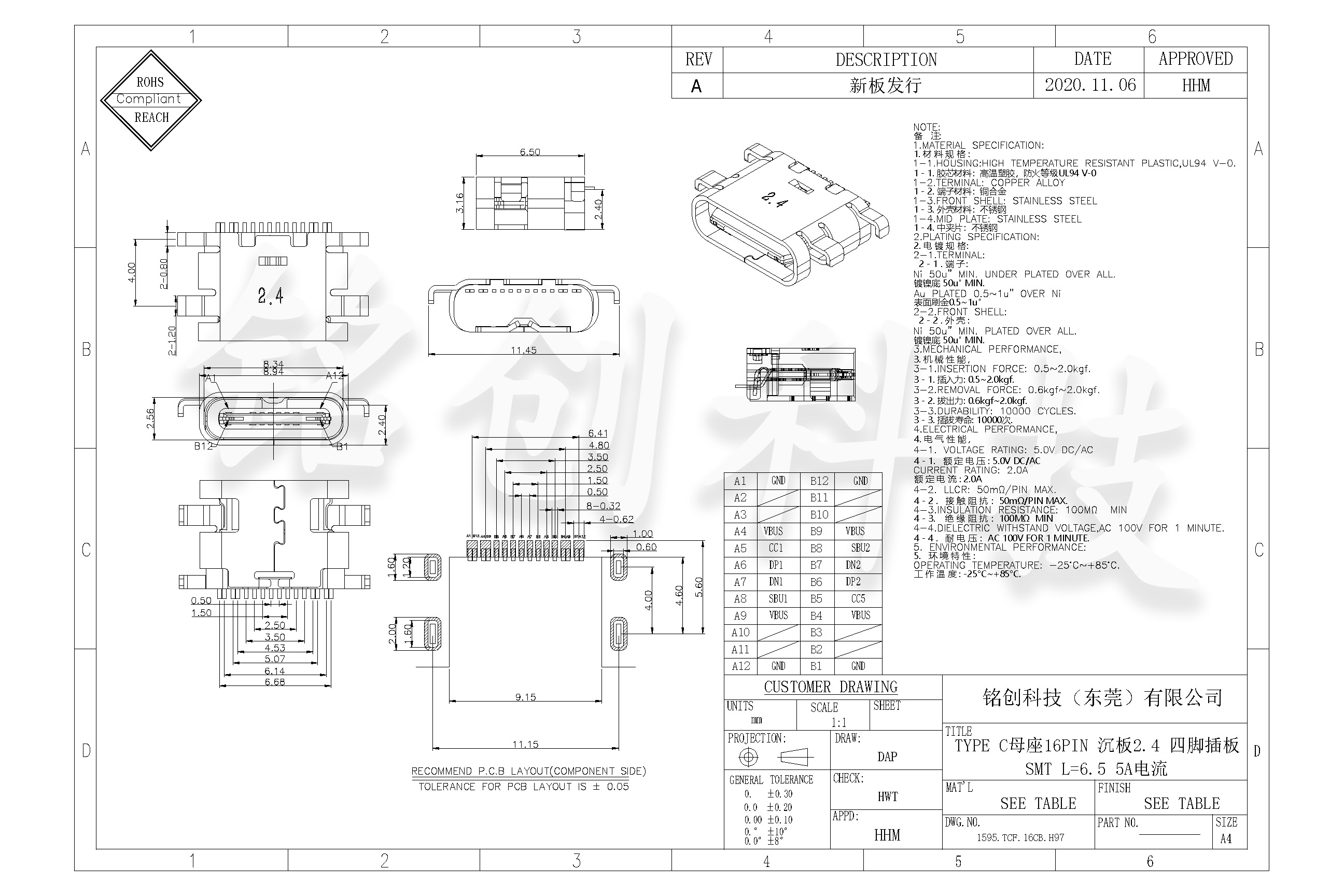

Reflow soldering peak ≤ 255 ℃, holding time above 217 ℃ for 60-90 seconds to avoid discoloration of LCP shell; The 2.4mm sinking plate requires precise control of the PCB hole depth (tolerance ± 0.05mm).

It is recommended to use a positioning fixture when welding four legs, and after welding, use 3D AOI to check the pin offset<0.03mm to ensure coaxiality with the mother seat.

Usage restrictions:

Non waterproof models are prohibited from being exposed to humid environments, and waterproof sealing rings are recommended to be replaced annually; When the continuous current is greater than 5A, additional heat dissipation measures should be taken (such as copper foil area ≥ 1cm ²).

It is necessary to use EMarker cables that support 5A and PD protocol chips (such as TI TPS2596), otherwise overcurrent protection may be triggered.

Maintenance suggestion:

Clean the interface dust with compressed air every quarter in industrial environments to avoid short circuits caused by metal debris; Wipe the terminals with anhydrous ethanol and prohibit chlorine containing solvents.

When idle for a long time, it is necessary to cover it with a dust cover, store it at a temperature of -20 ℃ to 60 ℃, and maintain a humidity of ≤ 60% RH to prevent terminal oxidation.
