Product Description:

This product is a high-performance Type-C USB female connector with a 16Pin interface design, 2.4mm board-mount installation, and supports 5A current transmission. It features a 4-pin board structure for excellent stability, making it ideal for high-power data transmission. It is widely used in consumer electronics, industrial equipment, automotive electronics, and other fields.

Key Features:

1. 5A Current Support:

   This product supports 5A current transmission, making it suitable for high-power devices and ensuring safe and efficient data transfer.

2. 16Pin Interface Design:

   The 16Pin interface design supports high-speed data transmission, meeting the connection needs of various USB devices.

3. 2.4mm Board-Mount Installation:

   The 2.4mm board-mount design ensures stable connections and is suitable for various complex application scenarios.

4. 4-Pin Board Structure:

   The 4-pin board structure improves the stability and durability of the interface, suitable for high-load environments.

5. Broad Compatibility:

   Suitable for a wide range of devices, particularly in consumer electronics, industrial equipment, and automotive electronics.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

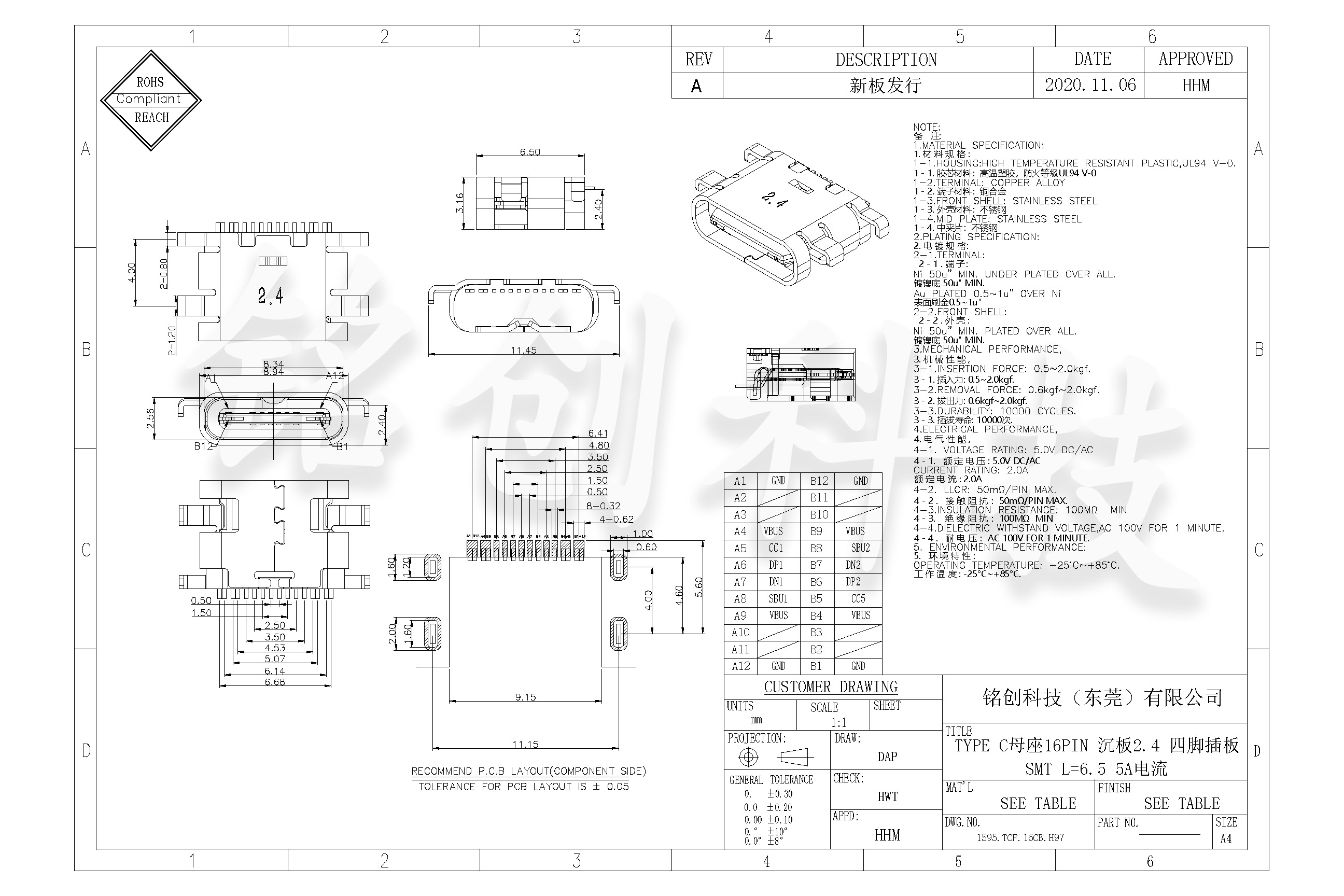

Type-C Female Connector 16Pin Recessed 2.4mm 4-Pin Board-Mount SMT L=6.5 5A USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering area is clean and free of debris before installation to ensure proper soldering quality.

   - Use temperature-controlled soldering tools and keep the temperature within the recommended range to avoid damaging the connector or PCB.

   - Ensure the four pins are securely soldered to the PCB for reliable electrical connections.

2. Electrical Performance:

   - This product complies with USB standards and supports a maximum of 5A current, making it suitable for high-speed data transfer and charging

applications.

   - The recessed design enhances mechanical strength and stability, making it ideal for high-density PCB layouts.

   - High-conductivity materials ensure excellent electrical performance, even under high-current conditions.

3. Insertion and Extraction:

   - Insert and extract the plug gently to avoid excessive force and prevent damage to the socket or plug.

   - Ensure the plug is properly aligned with the socket during insertion to avoid poor electrical contact due to misalignment.

4. Material Properties:

   - The housing is made of corrosion-resistant materials, providing excellent oxidation resistance and durability for long-term use.

   - The pins are made from high-conductivity materials such as brass, ensuring stable and efficient electrical connections.

5. Operating Environment:

   - Widely used in computers, consumer electronics, communication devices, and other electronic products.

   - Avoid using the product in high-temperature, humid, or highly corrosive environments to maintain stable performance over time.

6. Storage Conditions:

   - Store the product in a dry, ventilated area, away from direct sunlight and moisture.

   - Avoid storing in extreme temperatures to prevent aging of materials or performance degradation.

For more product information or technical support, please contact us:

- Hotline: 13310802726

- Email: mc13310802726@163.com
