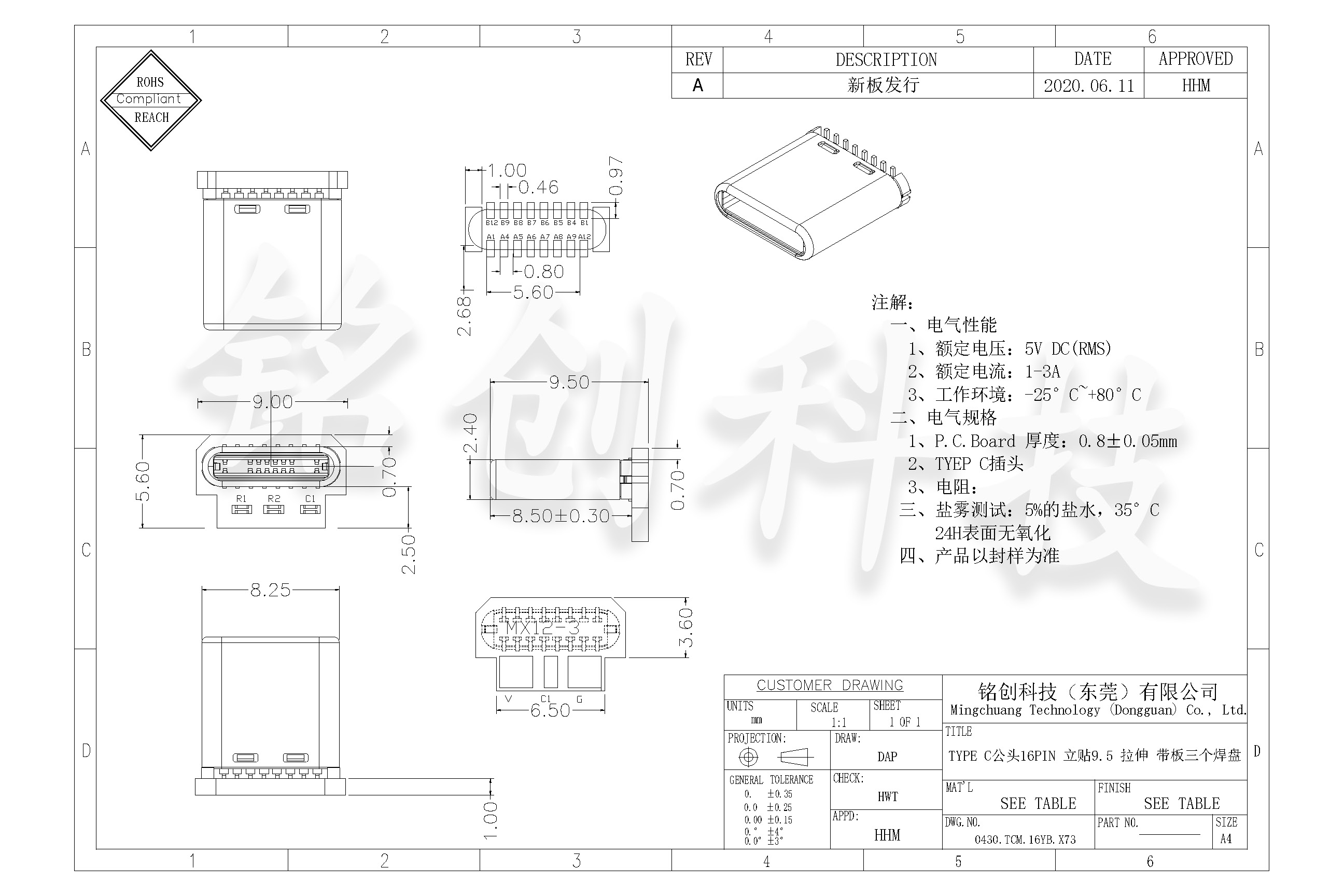

Industry certification

USB-IF certification: Compliant with USB PD 3.0 and USB 2.0 standards, supporting 5V/3A and 9V/2A fast charging protocols.

Safety certification: Passed UL 498 testing, withstand voltage of 1000V AC/1min without breakdown, terminal tension ≥ 5N, in compliance with GB 4943.1 safety specifications.

Environmental certification: RoHS 2.0/REACH compliant, LCP material recyclable, production process certified by ISO 14001.

Reliability testing

Environmental testing: 500 cycles of high and low temperature from -40 ℃ to 85 ℃, with a contact resistance change of ≤ 8%; Storage at 95% RH humidity for 48 hours, insulation resistance ≥ 500M Ω.

Protocol testing: Handshake success rate with iPhone and Android phones is 100%, supporting mainstream fast charging protocols such as QC 3.0/AFC.

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

Installation specifications

Welding parameters: Reflow welding temperature 250 ± 5 ℃, manual welding ≤ 320 ℃, welding time ≤ 3 seconds, to avoid LCP overheating and deformation.

PCB design: solder pad spacing tolerance ± 0.05mm, recommended copper coating for power layer ≥ 15mm ², signal layer to power layer spacing ≥ 0.3mm.

Positioning requirements: Use fixtures to ensure that the clamp is vertical, with a tilt angle of ≤ 1.5 °, to prevent uneven force on the pins from breaking.

Usage environment

Temperature and humidity range: working temperature -20 ℃ to 85 ℃, storage temperature -30 ℃ to 90 ℃, humidity ≤ 85% RH (no condensation).

Taboo scenarios: Avoid using in strong electromagnetic environments (>50mT), high-frequency vibrations (>20g), or medical grade anti-interference scenarios.

Maintenance suggestions

Regular inspection: Visually inspect the solder joints for cracks every quarter, and use a multimeter to measure the VBUS/GND contact resistance (≤ 30m Ω).

Cleaning and maintenance: Wipe the terminals with anhydrous alcohol, avoid sharp tools, and prevent wear of the nickel plating layer (thickness ≥ 50 μ ").

Long term storage: Sealed in an anti-static bag (humidity ≤ 60%), avoiding contact between the shell and acidic substances, with a storage period of ≤ 2 years.

Compatibility notes

Functional limitations: Groundless design may result in slightly higher EMI noise than grounded models. It is recommended to use shielded cables for high-speed data transmission.

Equipment matching: Suitable for TYPE C female seats without metal shells. Full function female seats may cause slight interference due to grounding suspension (probability<5%).
