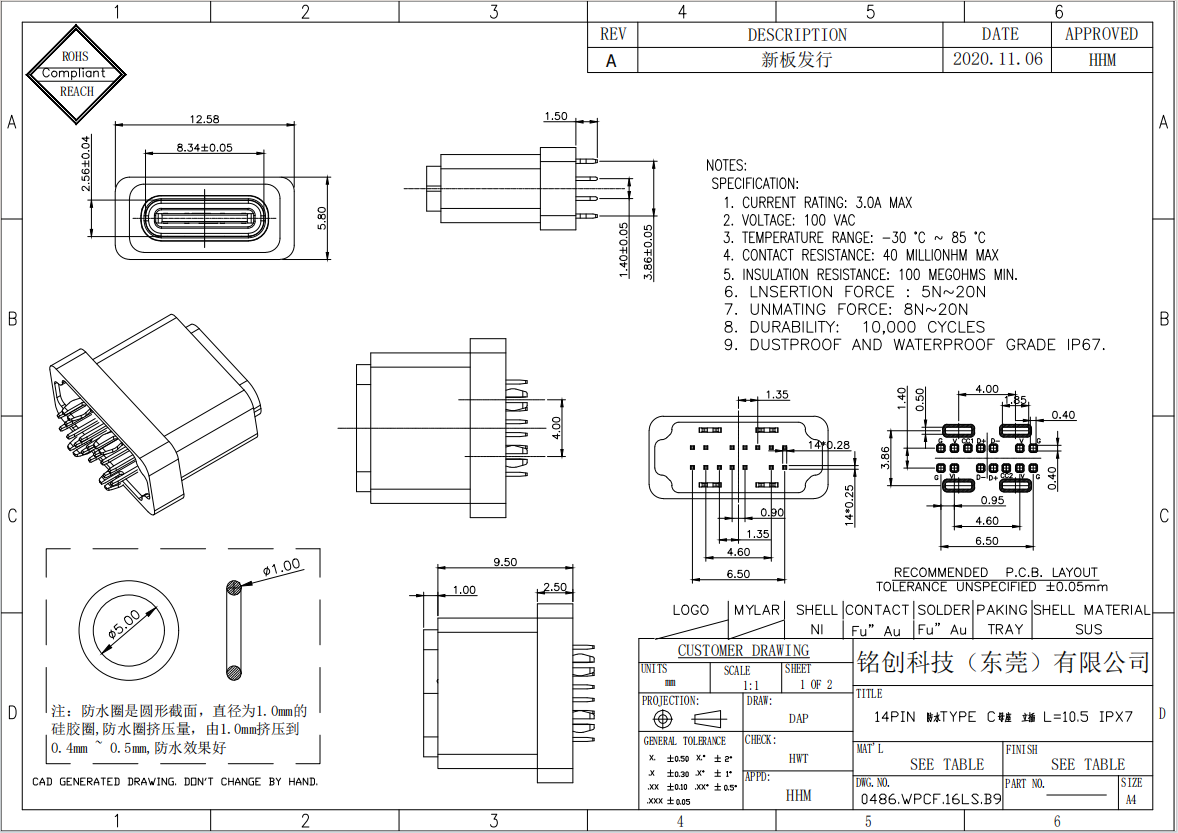

Product description:

This product is a high-performance waterproof Type-C USB socket with 14Pin interface and four-pin plug-in board design, which meets the industry

standard and is suitable for all kinds of electronic equipment that need waterproof protection. Its vertical plug design, with IPX7 waterproof grade, is

suitable for use in humid environment and provides solid and reliable connection performance.

Main features:

1. Waterproof performance:

It meets IPX7 waterproof standard, and can be immersed in 1m water depth for 30min without affecting its function, thus ensuring the long-term stable

operation of the equipment in the water environment.

2. Interface design:

14Pin interface, supporting high-speed data transmission, conforming to USB Type-C standard, and adapting to different equipment connection requirements.

3. Four-pin plug-in board structure:

Provide a stable installation method to effectively improve the stability and durability of the connection.

4. Wide application fields:

Suitable for consumer electronics, industrial equipment, automotive electronics and other application scenarios that require waterproof performance.

Statement of compliance:

This product strictly follows international and industry certification standards to ensure compliance in safety and environmental protection:

1. ISO 9001 quality management system certification:

Ensure that every link from design to production meets quality management standards.

2. REACH certification:

Comply with EU chemicals management regulations to ensure the safety and environmental protection of products and materials.

3. RoHS certification:

No harmful substances exceed the standard, which conforms to the EU directive on restricting the use of harmful substances and ensures the health of

users and environmental safety.

4. IPX7 waterproof certification:

Products have the highest standard of waterproof performance, suitable for use in harsh environments.

Contact information:

-Hotline: 13310802726

-E-mail: mc13310802726@163.com

-Company Address: Dalingshan Town, Dongguan City, Guangdong Province

1. Installation and welding:

-Please ensure that the welding surface is clean during installation, so as to avoid oil pollution or dust affecting the welding quality.

-The welding temperature should be controlled within the specified range. Excessive temperature may affect the stability of the internal structure of the interface.

-The four-pin plug board of the socket should be firmly installed to ensure the reliability and waterproof effect of the connection.

2. Waterproof performance:

-This product conforms to IPX7 waterproof grade, can be immersed in 1m water depth for 30min, and is suitable for outdoor or humid environment.

-Please ensure that the tightness of the interface is not damaged, especially after frequent plugging and unplugging or long-term use, the integrity of the sealing part may be affected.

-When it is used in the environment of strong water flow, please try to avoid the direct impact of water flow on the interface.

3. Plug-in operation:

-When plugging and unplugging, please ensure that the operation is gentle, and avoid excessive contact between the plug and the socket, so as to avoid damaging the contact points.

-When plugging and unplugging, it should follow the forward plugging and unplugging, so as to avoid the asymmetric insertion of the plug into the interface, which may cause the interface damage or poor contact.

-Plugging times should be controlled within the design requirements to avoid excessive wear.

4. Electrical performance:

-Please use it within the specified current and voltage range of the product to ensure normal operation and prolong the product life.

-Avoid current overload or abnormal voltage to prevent damage to interfaces and related circuits.

5. Cleaning and maintenance:

-If the interface surface is contaminated with moisture or dust, please wipe it with a clean and soft cloth in time to avoid using chemical cleaners.

-Check the sealing ring, pins and other parts of the interface regularly to ensure that they are not damaged or aged, and maintain waterproof performance.

6. Application environment:

-This product is suitable for use in humid environment, but long-term exposure to high temperature, high humidity or corrosive environment is not recommended.

-Try to avoid strong mechanical impact or scratches on the interface.

7. Storage conditions:

-Unused products should be stored in a dry, cool and ventilated environment to avoid direct sunlight.

-Please avoid storing the product in an environment with too high or too low temperature, so as not to affect the product performance.
