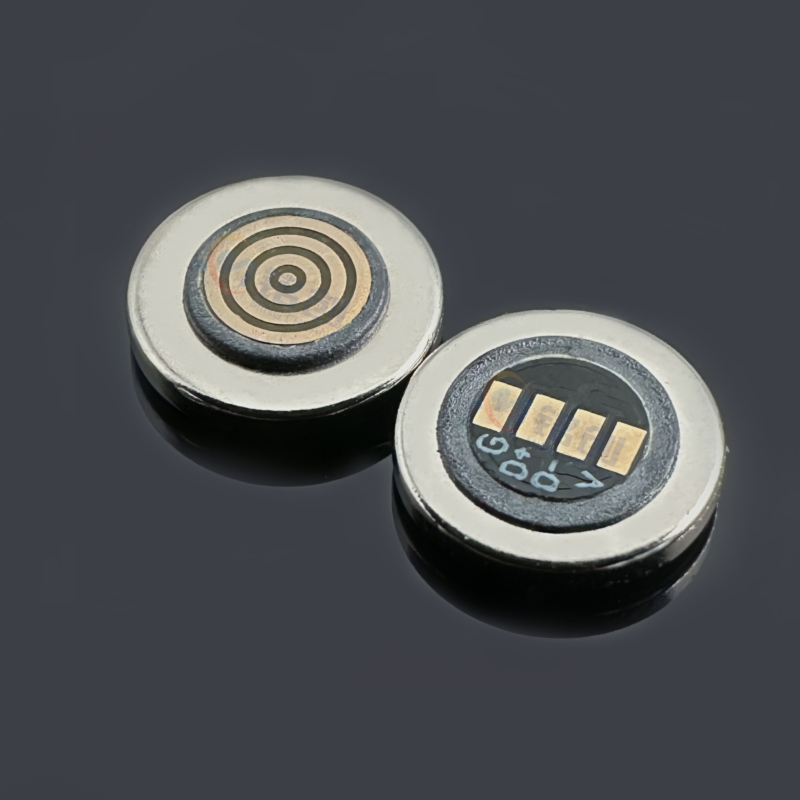

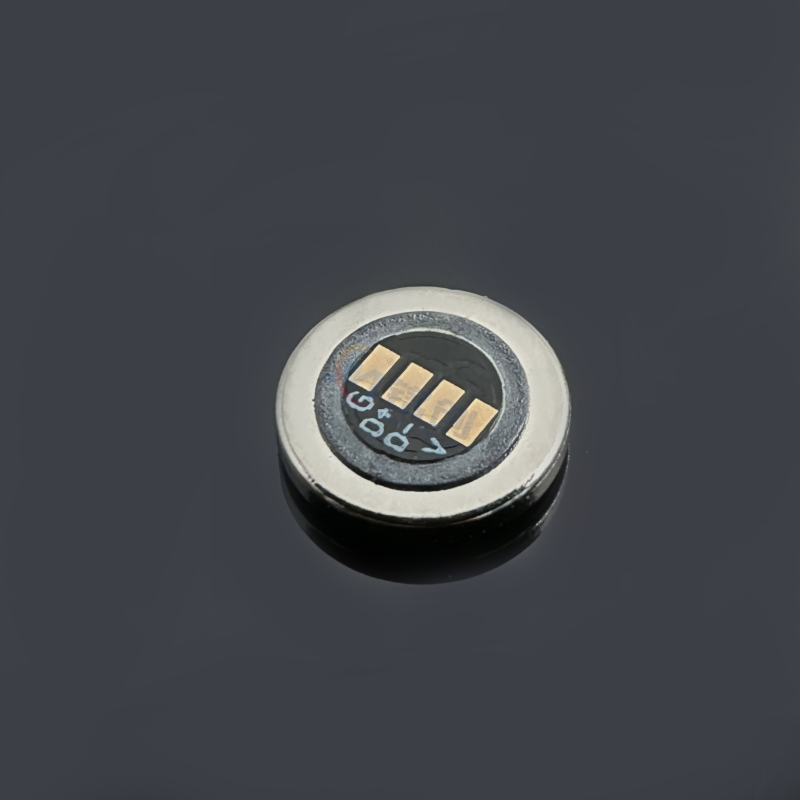

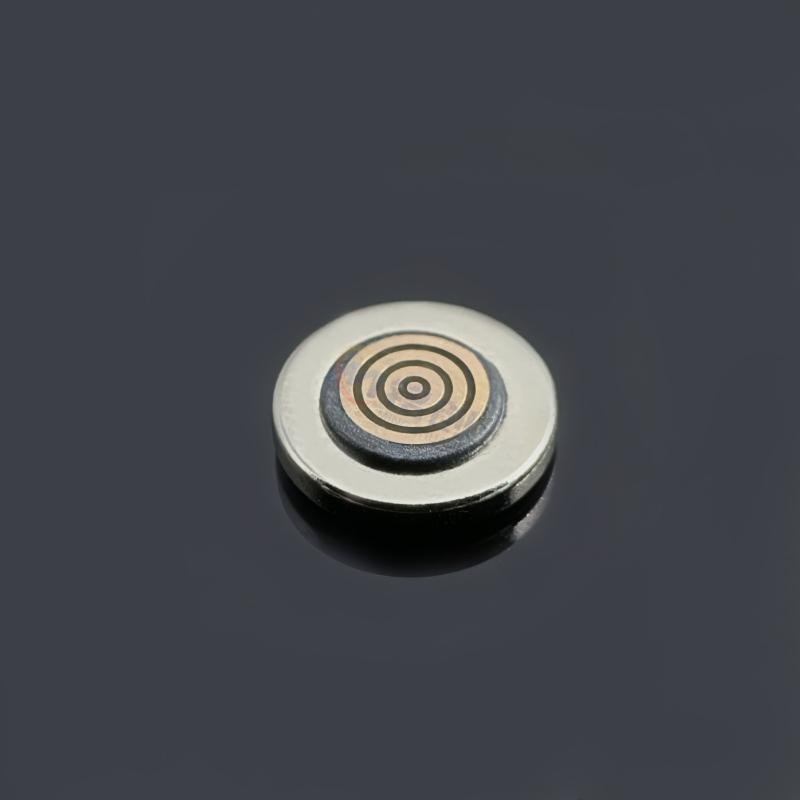

Product Description:

This product is a circular magnetic male plug designed for board-end mounting. It features power pins for positive and negative connections, as well as D+

and D- data transmission. The innovative rotational magnetic coupling eliminates the need for traditional plug-and-pull operations. With its unique magnetic

structure and stable electrical performance, it is ideal for applications requiring frequent connections or specialized installation environments, such as smart

home devices, medical equipment, and industrial automation.

Key Features:

1. Magnetic Rotational Coupling Design:

   Utilizes magnetic attraction for connection and ensures stable electrical contact through rotational coupling, simplifying installation and usage.

2. Supports Positive/Negative and D+/D- Signals:

   Provides reliable power connections and supports high-speed data transmission for various applications.

3. Connector-Free Male Plug Structure:

   The connector-free design minimizes mechanical wear and enhances durability, ideal for frequent operation scenarios.

4. Circular 7-Pin Layout:

   The unique circular pin distribution enhances signal stability and optimizes contact performance.

5. Wide Applicability:

   Particularly suitable for high-end consumer electronics, medical devices, and industrial automation requiring innovative connection solutions.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures that the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

Round 7-Pin Board-End MD Magnetic Male Head Without Connector Data Type Usage Notes:

1. Installation and Soldering:

   - Ensure the installation area is clean and free of dust or contaminants to maintain connection performance.

   - Control soldering temperature within the recommended range to avoid component damage.

   - After installation, ensure the magnetic male head aligns tightly with the counterpart to prevent loose connections.

2. Electrical Performance:

   - This product supports only positive and negative poles along with D+ and D- functions, suitable for data transmission and basic power supply scenarios.

   - The magnetic design ensures stable electrical connections without wear and tear during rotational coupling.

3. Operational Guidelines:

   - During coupling, ensure proper alignment of pins to avoid connection failure.

   - Avoid excessive force during rotation, which may damage the magnetic components.

4. Material Properties:

   - Made from high-conductivity materials to ensure stable and reliable data transmission.

   - The outer shell is designed to withstand multiple coupling operations while maintaining performance.

5. Operating Environment:

   - Suitable for devices requiring quick magnetic coupling, such as medical instruments and industrial equipment.

   - Avoid usage in strong magnetic fields or high-humidity environments, which may affect magnetic performance and electrical stability.

6. Storage Conditions:

   - Store unused products in a dry environment away from magnetic interference and direct sunlight.

   - Avoid storage in extreme high or low temperatures to prevent material aging or reduced magnetic strength.
